Hyundai Elantra: Rear Glass Defogger / Components and Components Location

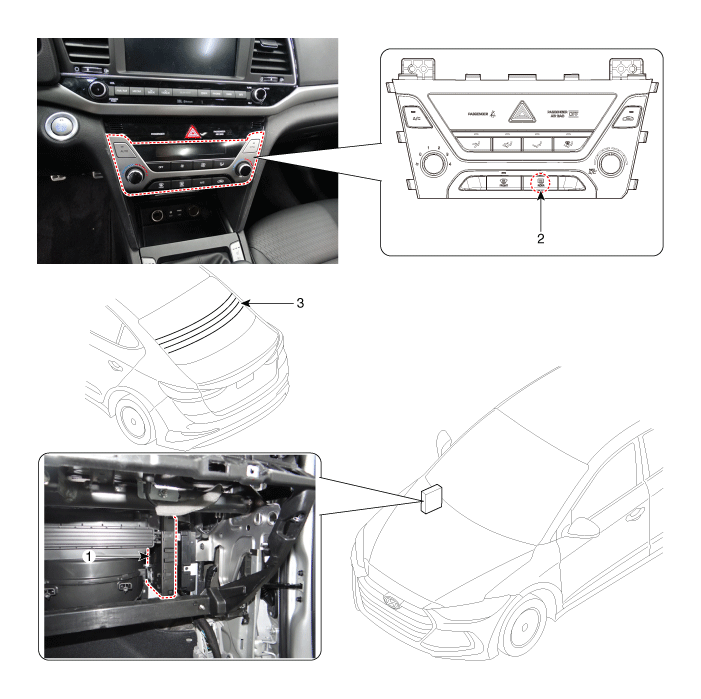

| Component Location |
| 1. Body control module (BCM) 2. Rear glass defogger switch | 3. Rear glass defogger |
