Hyundai Elantra: Air Conditioning System / Compressor Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Compressor Components and Components Location

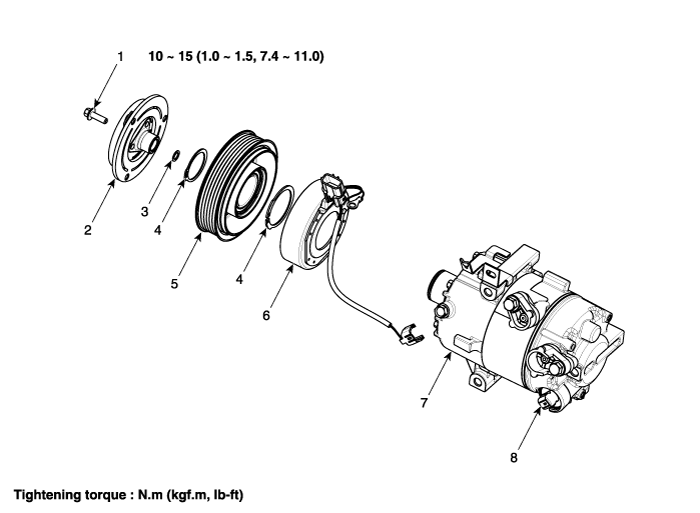

Components

[Nu Engine]

1. Clutch bolt
2. Limiter & Hub Assembly
3. Compressor clutch hub spacer
4. Retainer

5. Pulley
6. Clutch field coil assembly
7. Compressor assembly
8. Electric control valve (ECV)

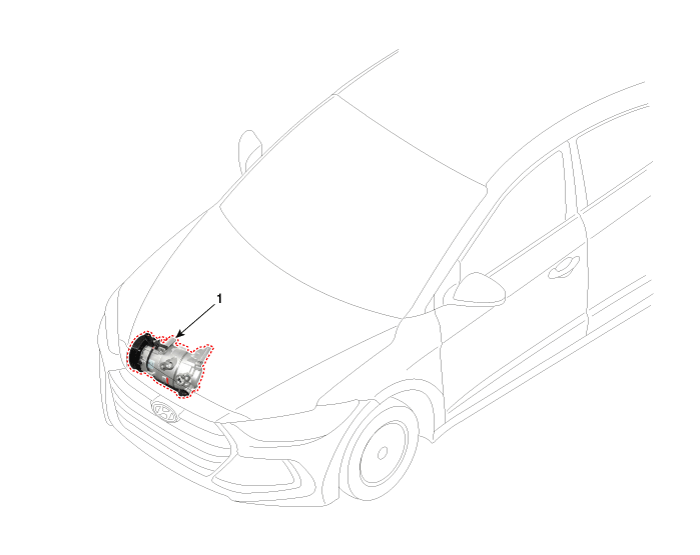

Components Location

1. Compressor
