Hyundai Elantra: Heater / Heater Unit Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Heater / Heater Unit Components and Components Location

Component Location

1. Heater unit assembly

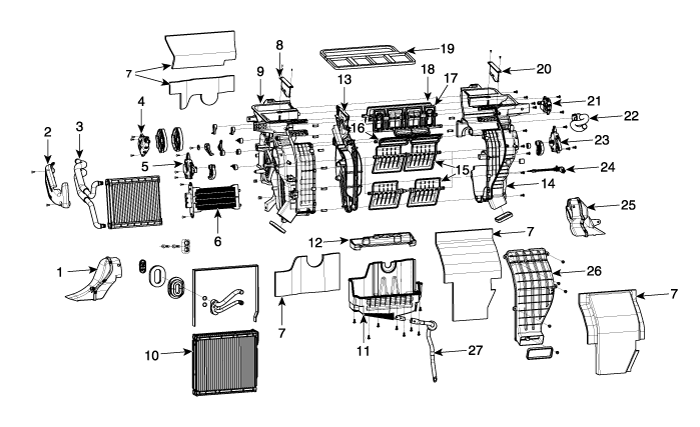

Compoents

1. Shower duct [LH]
2. Heater core cover
3. Heater core & Seal assembly
4. Mode actuator
5. Temperature control actuator [LH]
6. PTC Heater
7. Heater unit pad
8. Air guide [LH]
9. Heater case [LH]

10. Evaporator core assembly
11. Heater core assembly
12. Evaporator lower insulation
13. Separator
14. Heater case [RH]
15. Temperature door assembly
16. Floor door assembly
17. Vent door assembly
18. Deforster door assembly

19. Center duct seal
20. Air guide [RH]
21. Auto defogging actuator
22. Hose
23. Temperature control actuator [RH]
24. Evaporator thermistor sub assembly
25. Shower duct [RH]
26. Rear console cover
27. Drain hose
