Hyundai Elantra: LKAS(Lane Keeping Assist System) / LKAS Unit Components and Components Location

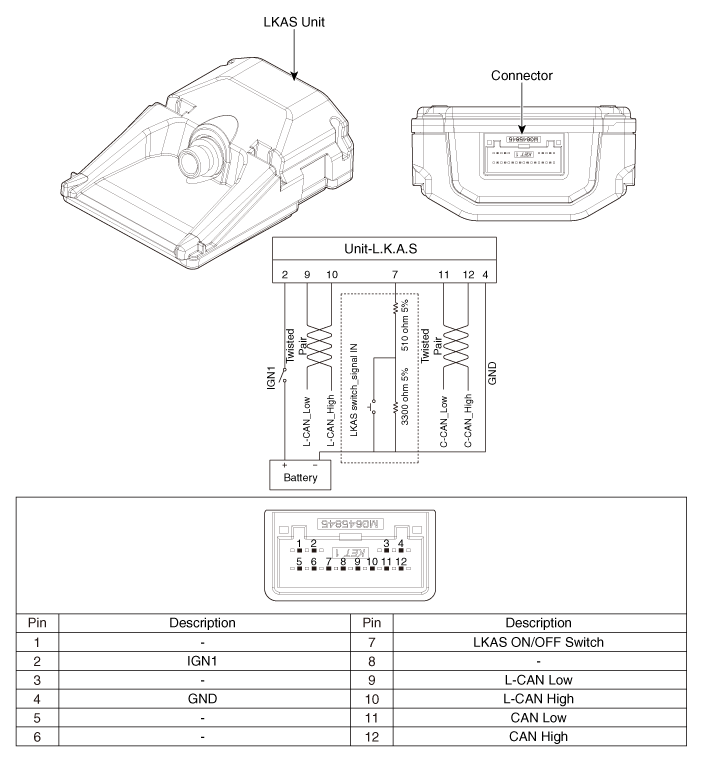

| Components |
Repair procedures
Service Point Target Auto Calibration (SPTAC)
This procedure provides a way to calibrate the camera by
having the service technician align the car to a well lit simulated
straight road target; ...
LKAS Unit Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the LDWS unit cover (A).
3.
Disconnect the LKAS unit connector (A).
4.
Remove the LKAS unit after disengaging the mou ...
