Hyundai Elantra: If You Have a Flat Tire / With Tire Mobility Kit (TMK, if equipped) - Type B
For safe operation, carefully read and follow the instructions in this manual before use.

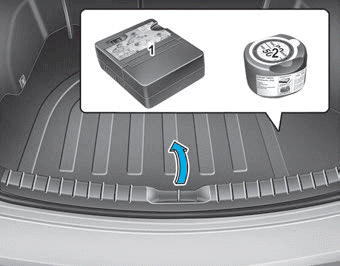

(1) Compressor
(2) Sealant bottle
The Tire Mobility Kit is a temporary fix to the tire and the tire should be inspected by an authorized HYUNDAI dealer as soon as possible.
CAUTION
One sealant bottle for one tire
When two or more tires are flat, do not use the tire mobility kit because the supported one sealant of Tire Mobility Kit is only used for one flat tire.
WARNING
Tire wall
Do not use the Tire Mobility Kit to repair punctures in the tire walls. This can result in an accident due to tire failure.
WARNING
Temporary fix
Have your tire repaired as soon as possible. The tire may lose air pressure at any time after inflating with the Tire Mobility Kit.
- Introduction
- Notes on the safe use of the Tire Mobility Kit
- Components of the Tire Mobility Kit
- Using the Tire Mobility Kit
- Distributing the sealant
- Checking the tire inflation pressure
Checking the tire inflation pressure
1. After driving approximately 7~10 km (4~6 miles or about 10 min), stop at a
safety location.
2. Connect the filling hose (3) directly into the compressor
3. Connect the other end of the fill ...
Introduction
With the Tire Mobility Kit you stay mobile even after experiencing a tire puncture.
The compressor and sealing compound system effectively and comfortably seals
most punctures in a passenger car ti ...
