Hyundai Elantra: Driveshaft Assembly / BJ Boot Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot Components and Components Location

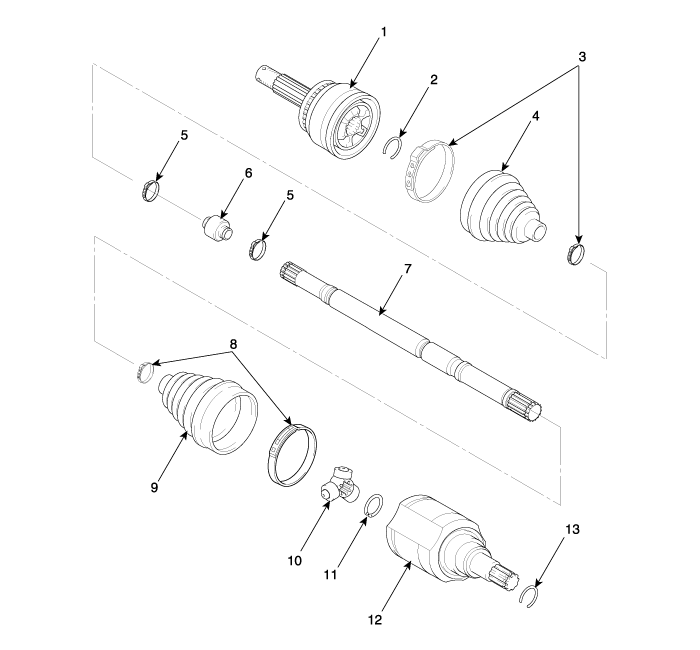

components (1)

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ housing
13. Clip

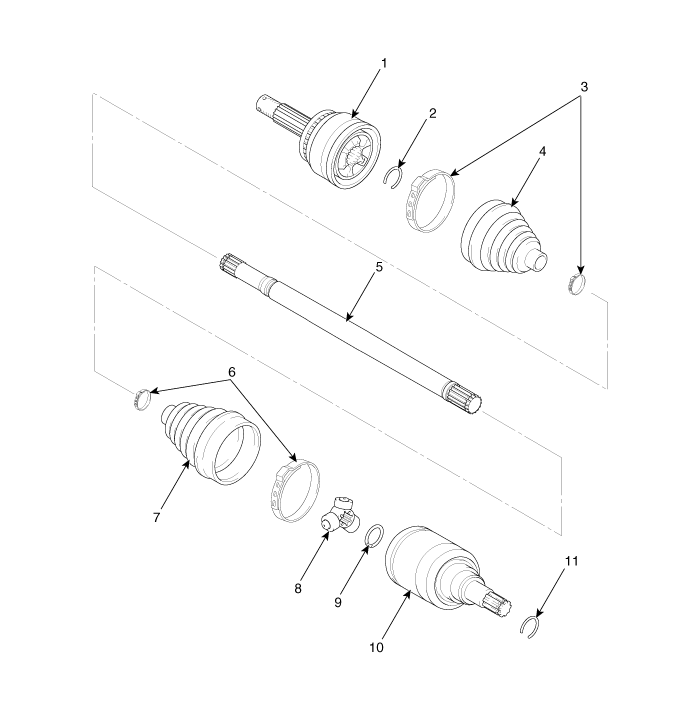

components (2)

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ Case
11. Clip

TJ Joint Repair procedures

Disassembly • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease. • The boot band should be replaced with a ne ...

BJ Boot Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint") 3. Remove the ...
