Hyundai Elantra: Side View Mirrors / Blind spot mirror

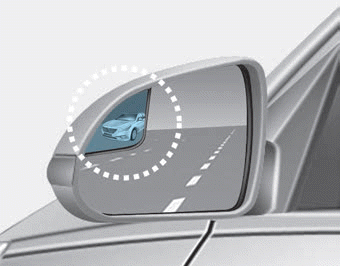

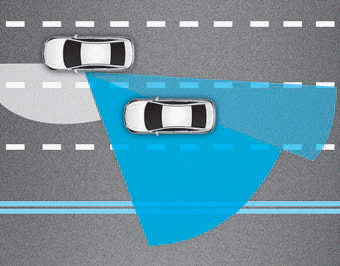

The Blind Spot Mirror (BSM) is a supplemental mirror that reduces the driver's blind spot by showing the rear side area of the vehicle. The blind spot mirror is equipped on the left-hand side view mirror.
WARNING
- Always check the road condition while driving for unexpected situations even though the vehicle is equipped with a blind spot mirror.
- The blind spot mirror is a device made for convenience. Do not solely rely on the mirror but always pay attention to traffic around you.
NOTICE
Do not clean the mirror with harsh abrasives, fuel or other petroleum based cleaning products.
