Hyundai Elantra: Storage Compartment / Center Console Storage, Sliding Armrest

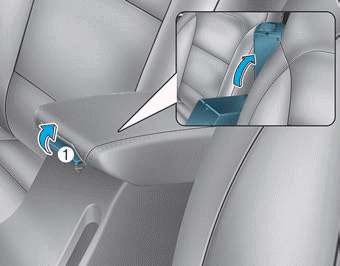

Center Console Storage

Hyundai Elantra. Center Console Storage, Sliding Armrest

To open :

Grab and hold the latch (1) on the arm rest then lift the lid.

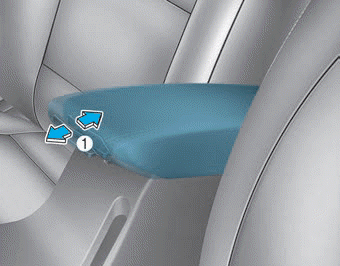

Sliding Armrest

Hyundai Elantra. Center Console Storage, Sliding Armrest

To move the armrest forward:

Grab and hold the latch (1) on the arm rest then slide the armrest forward.

To move the armrest rearward:

Grab and hold the latch (1) on the armrest then push the armrest rearward.

WARNING

Do not grab the front portion of the armrest (1) when moving the armrest rearward. You may pinch your fingers.
