Hyundai Elantra: Valve Body System / Components and Components Location

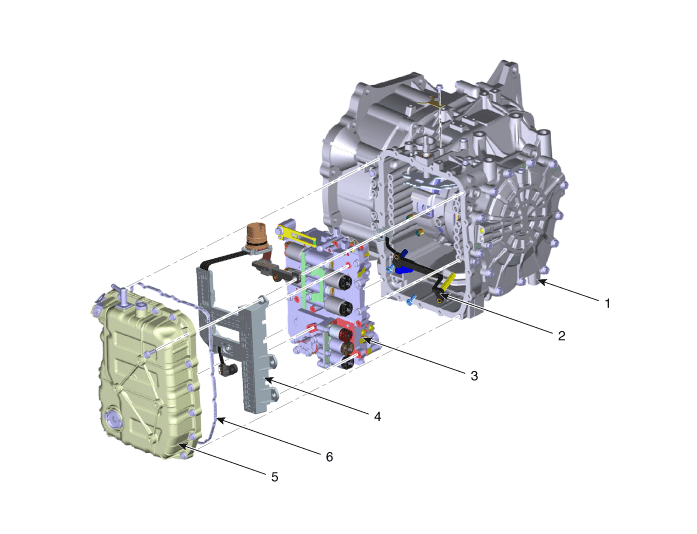

Components Location

1. Automatic transaxle
2. Input/Output speed sensor
3. Valve body assembly
4. Solenoid valve connector module
5. Valve body cover
6. Gasket

Valve Body System
...

Valve Body Description and Operation
Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Specifically, these valves consist of press ...
