Hyundai Elantra: Roof Trim / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Roof Trim / Components and Components Location

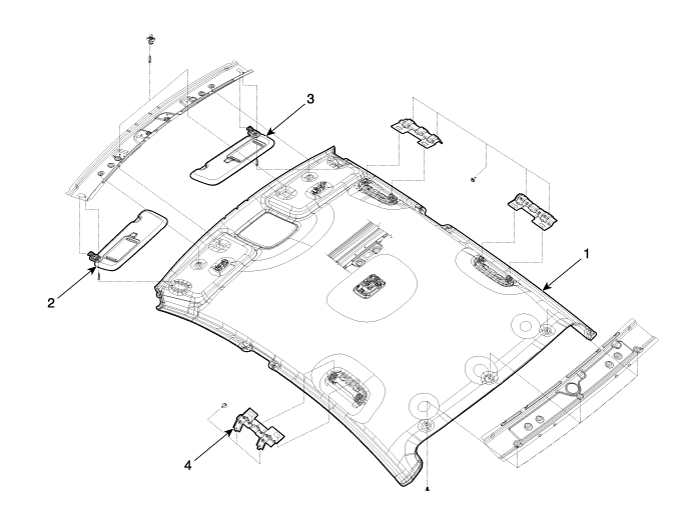

Components (1)

[General Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
4. Assist handle

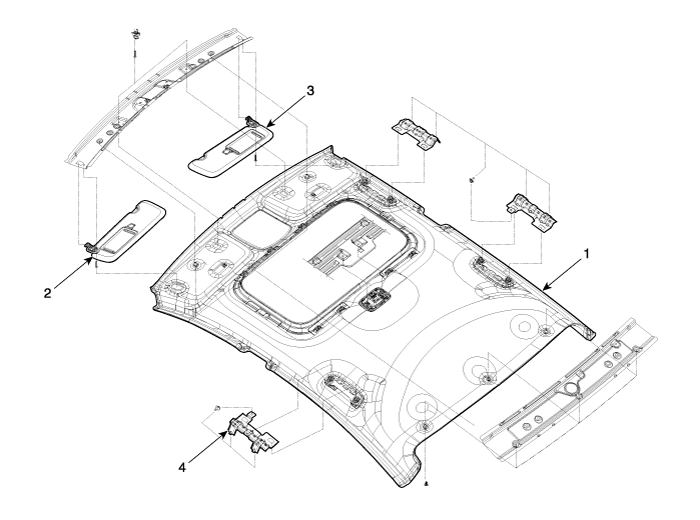

Components (2)

[Sunroof Type]

1. Roof trim
2. Sunvisor [LH]

3. Sunvisor [RH]
4. Assist handle

Roof Trim

...

Sunvisor Components and Components Location

Component Location 1. Sunvisor2. Retainer ...
