Hyundai Elantra: LCD display for transmission temperature and warning message / DCT warning messages

Hyundai Elantra. DCT warning messages

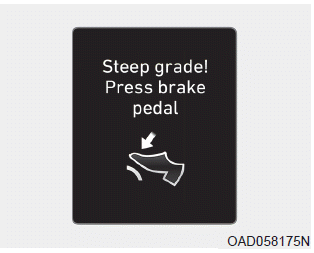

Steep grade

This warning message is displayed when vehicle is driven slowly on a grade and the vehicle detects that the brake pedal is not applied. Driving up hills or on steep grades:

Hyundai Elantra. DCT warning messages

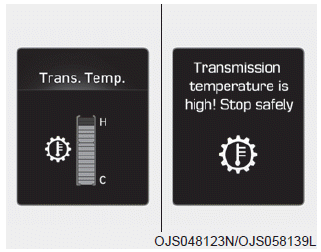

Transmission high temperature

Hyundai Elantra. DCT warning messages

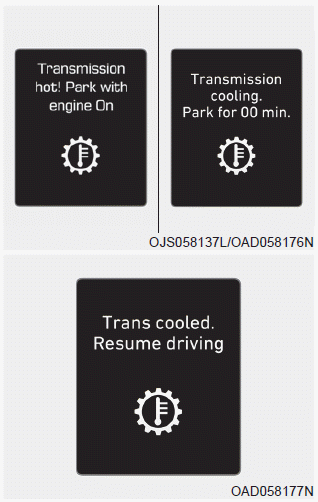

Transmission overheated

If any of the warning messages in the LCD display continue to blink, for your safety, contact an authorized HYUNDAI dealer and have the system checked.

Transmission temperature gauge
Select trip computer mode on the LCD display and move to the transmission temperature screen to see the temperature of the dual clutch transmission. Try to drive so that the temperature gaug ...

Transmission ranges
The indicator in the instrument cluster displays the shift lever position when the ignition switch is in the ON position P (Park) Always come to a complete stop before shifting into P (Park). To ...
