Hyundai Elantra: Driveshaft Assembly / Dynamic Damper Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Driveshaft and axle / Driveshaft Assembly / Dynamic Damper Components and Components Location

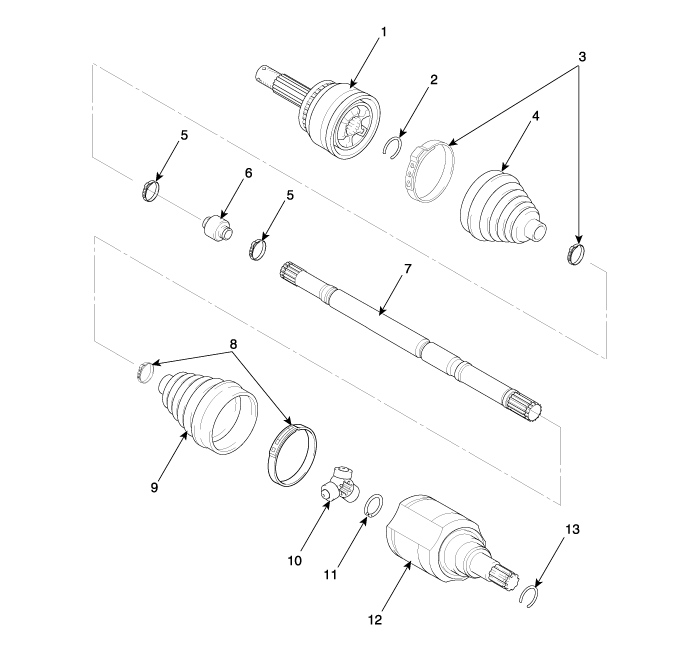

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ housing
13. Clip

Front Driveshaft Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub. Tightening torque : 107.9 ~ 12 ...

Dynamic Damper Repair procedures
Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint") 3. Remove the r ...
