Replacement

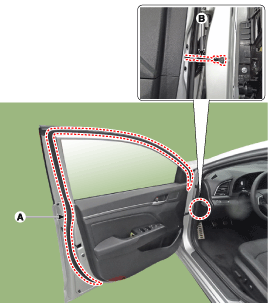

[Front door side weatherstrip]
1.
Loosen the front door checker (B) mounting bolt.

Tightening torque :
18.6 ~ 28.4 N.m (1.7 ~ 2.2 kgf.m,13.7 ~ 21.0 lb-ft)

2.
Detach the clips, then remove the front door side weatherstrip (A).

3.
To intall, reverse the removal procedure.

Replace any damaged clips (or pin-type retainers).
[Front door body side weatherstrip]
1.
Detach the clips, then remove the front door body side weatherstrip (A).

2.
To intall, reverse the removal procedure.

Replace any damaged clips (or pin-type retainers).
