Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Trim Components and Components Location

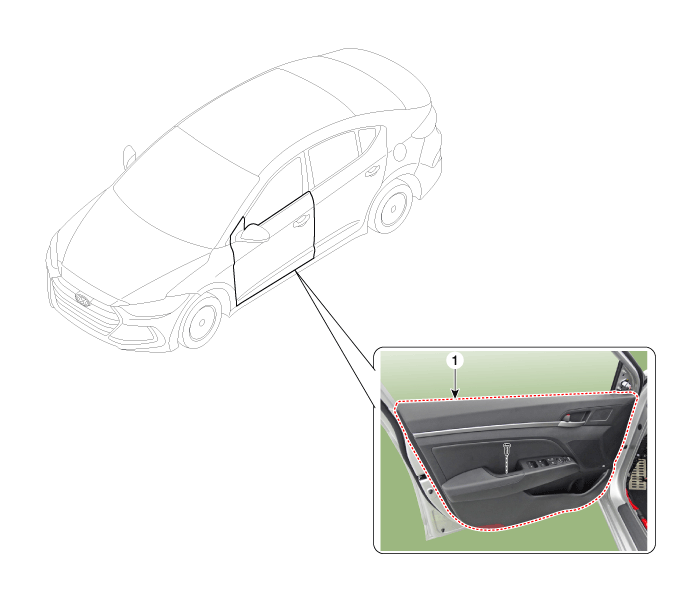

Component Location

1. Front door trim


Repair procedures
Adjustment Glass Adjustment     • Check the glass run channel for damage or deterioration, and replace it if necessary. 1. Remove the front door trim. (Refer to Front ...

Front Door Trim Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
