Hyundai Elantra: Driveshaft Assembly / Front Driveshaft Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft Components and Components Location

Components (1)

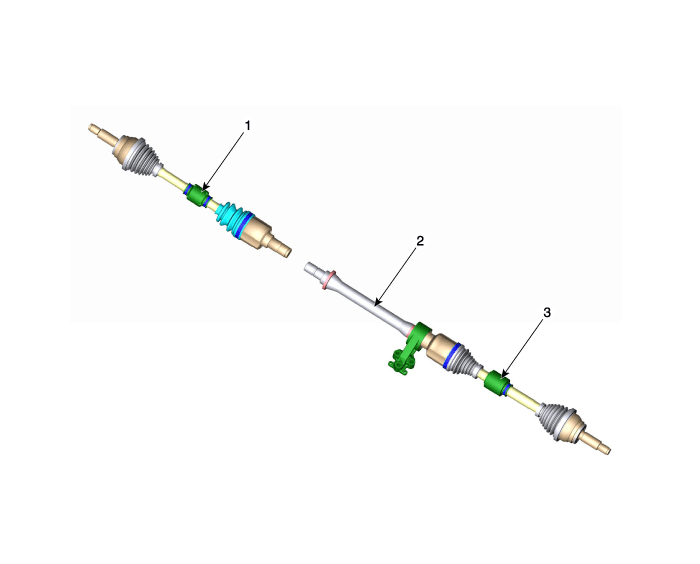

[GAMMA T-GDI]

1. Driveshaft (LH)
2. Inner shaft bearing bracket
3. Driveshaft (RH)

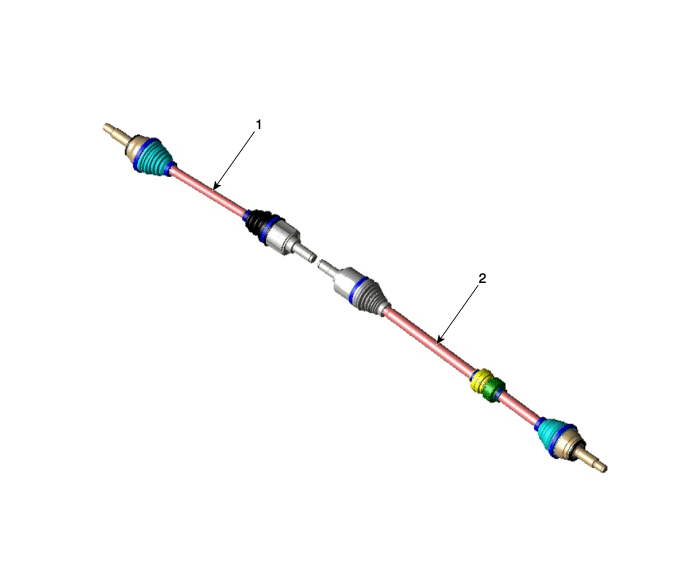

[Except GAMMA T-GDI]

1. Driveshaft (LH)
2. Driveshaft (RH)


Components (2)

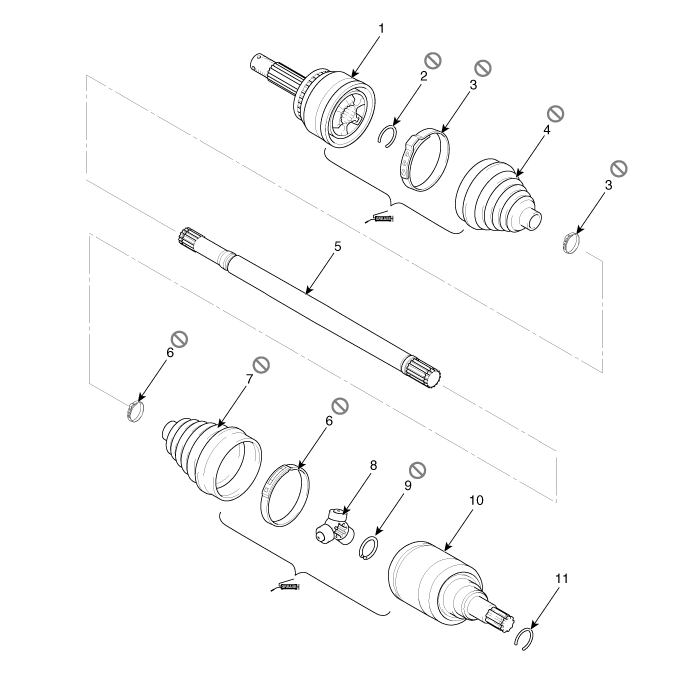

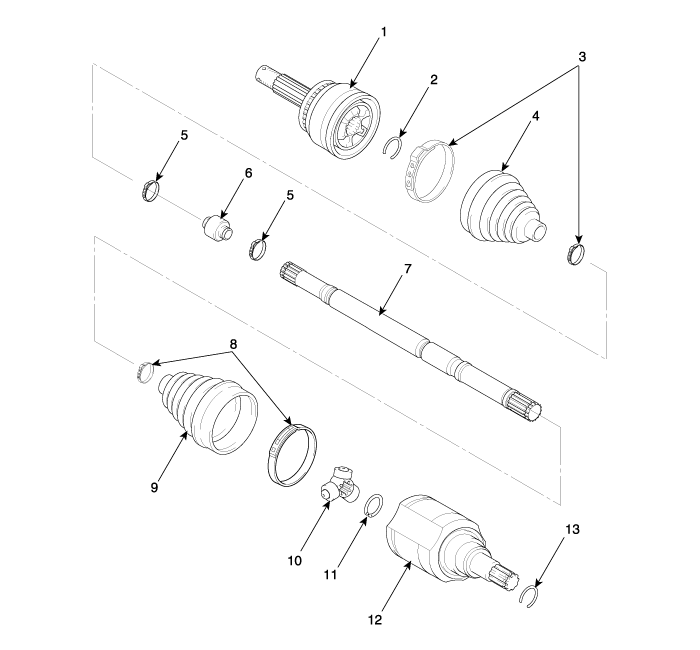

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Clip

[LH]

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ Case
11. Clip

Driveshaft Assembly
...

Front Driveshaft Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub. Tightening torque : 107.9 ~ 12 ...
