Hyundai Elantra: Seats / Head Restraints

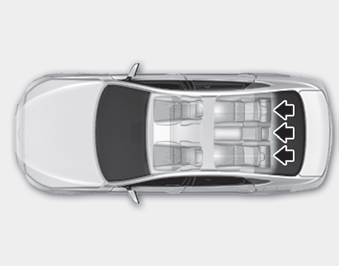

The vehicle's front and rear seats have adjustable head restraints. The head restraints provide comfort for passengers, but more importantly they are designed to help protect passengers from whiplash and other neck and spinal injuries during an accident, especially in a rear impact collision.
WARNING
To reduce the risk of serious injury or death in an accident, take the following precautions when adjusting your head restraints:
- Always properly adjust the head restraints for all passengers BEFORE starting the vehicle.
- NEVER let anyone ride in a seat with the head restraints removed or reversed.

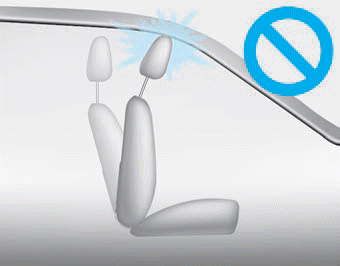

Adjust the head restraints so the middle of the head restraints is at the same height as the height of the top of the eyes.- NEVER adjust the head restraint position of the driver's seat when the vehicle is in motion.
- Adjust the head restraint as close to the passenger's head as possible. Do not use a seat cushion that holds the body away from the seatback.
- Make sure the head restraint locks into position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull on the head restraints.
Armrest
The armrest is located in the center of the rear seat. Pull the armrest down
by using the strap from the seatback to use it.
If your car is not equipped with a rear armrest, the rear cup holders ...

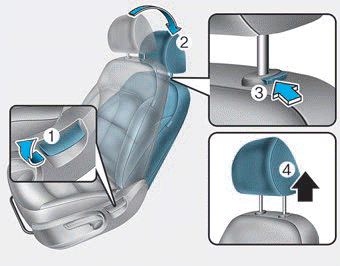

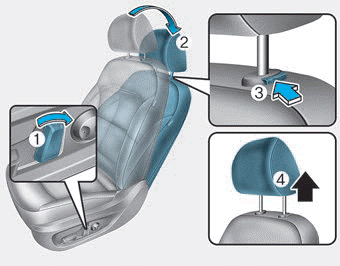

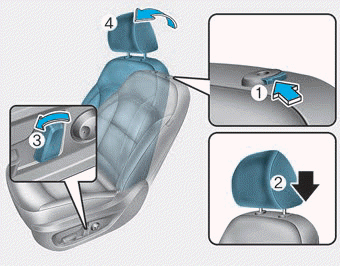

Front seat head restraints

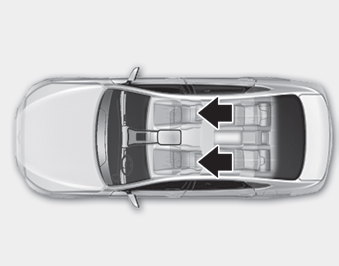

The vehicle's front and passenger's seats are equipped with adjustable head restraints
for the passengers safety and comfort.

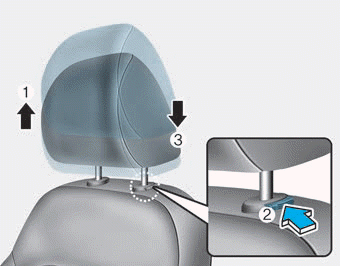

Adjusting the height up and down
To raise the head restrai ...
