1. Park the vehicle and set the parking brake.

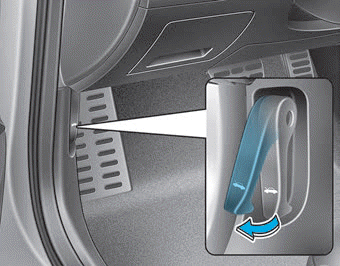

2. Pull the release lever to unlatch the hood. The hood should pop open slightly.

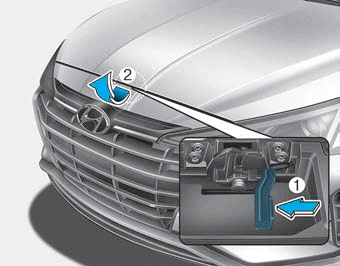

3. Go to the front of the vehicle, raise the hood slightly, push up the secondary latch (1) inside of the hood center and lift the hood (2).

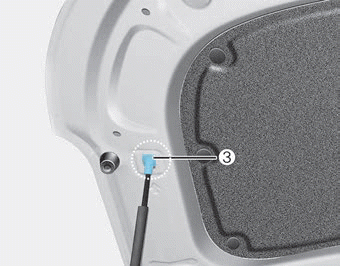

4. Pull out the support rod and prop the hood open with the support OAD045025 rod (3).
WARNING
Closing the hood
1. Before closing the hood, check the following:
2. Return the support rod to its clip to prevent it from rattling.
3. Lower the hood halfway (front edge approximately 12 inches (30 cm) from the bumper) before dropping the hood to its locked position. Then double check to make sure the hood is secure. If the hood can be raised again, it is not securely locked. Open it again and close it with more force.
WARNING
Hyundai Elantra AD (2016-2020) Service Manual: Transaxle Control Module (TCM) Schematic Diagrams
TCM Connector and Terminal Function
TCM Terminal Function
Connector [A] Connector [K] PinDescriptionPinDescriptionA1Overdrive clutch control solenoid valve(OD/C_VFS)K8FLEXRAY COMM. Signal HIGHA5Torque converter control solenoid(T/CON_VFS)K25FLEXRAY COMM. Signal LOWA6Pressure control solenoid ( ...
Hyundai Elantra AD (2016-2020) Service Manual: Battery Repair procedures
Removal
Battery
1.
Turn the ignition switch OFF.
2.
Disconnect the battery (-) terminal (A).
3.
Remove the battery (+) terminal (B).
4.
Remove the battery mouting bracket (A).
5.
Remove the battery insulation pad after removing the battery (B).
Battery tray
1.
Remove ...
