Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly Components and Components Location

Component Location

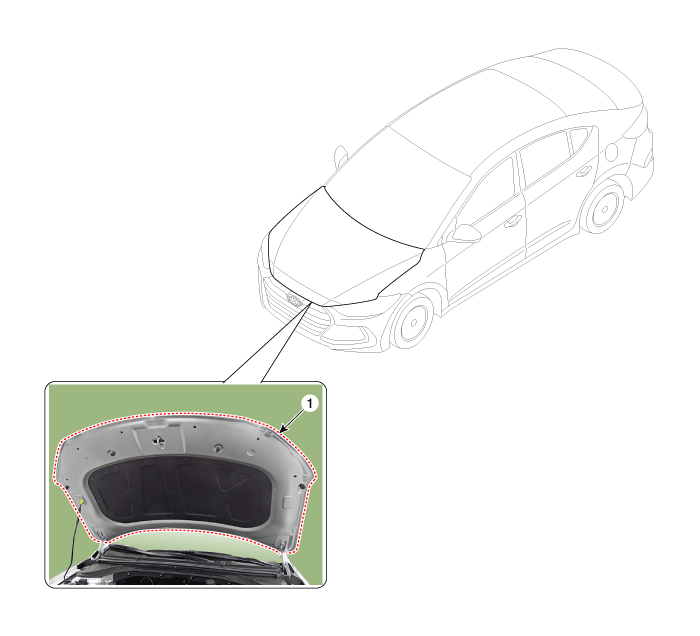

1. Hood assembly

Repair procedures
Adjustment 1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down or from side to side and tighten the bolt. 2. Adjust the hood height by moving the hoo ...

Hood Assembly Repair procedures
Replacement     • Be careful not to damage the hood and body.     • Removing or installing the hood requires an assistant. • When removing ...
