Hyundai Elantra: Convenient Features of Your Vehicle / Instrument Cluster

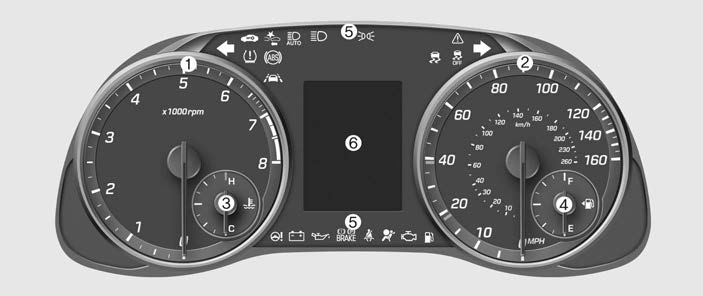

â– Conventional cluster

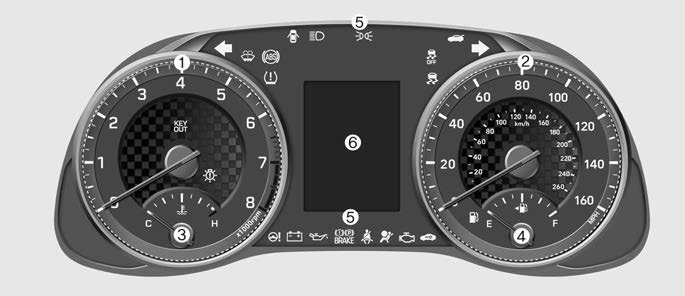

â– Supervision cluster (Type A)
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
The actual cluster in the vehicle may differ from the illustration.
â– Supervision cluster (Type B)

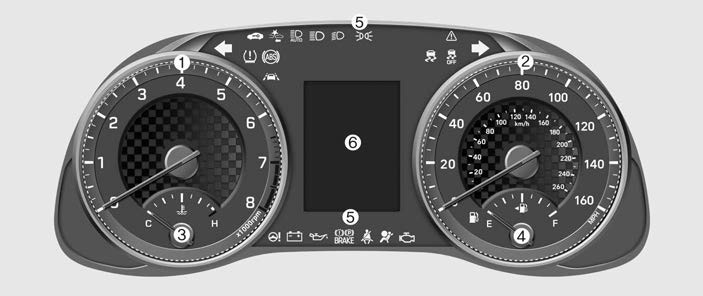

â– Supervision cluster (Type C)
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display (including Trip computer)
