LCD Display Control

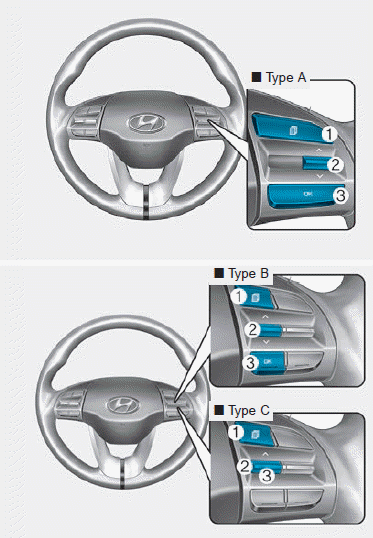

The LCD display modes can be changed by using the control buttons on the steering wheel.
(1) : MODE button for changing modes
(2) ▲, ▼ : MOVE switch for changing items
(3) OK : SELECT/RESET button for setting or resetting the selected item
Hyundai Elantra AD (2016-2020) Service Manual: Stop Lamp Switch Repair procedures
Adjustment
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the lower crash pad.
(Refer to Body - "Crash Pad")
3.
Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance (A) : 1.0 ~ 2.0 mm (0.04~ 0.08 in.)
4.
If the gap betw ...
Hyundai Elantra AD (2016-2020) Service Manual: Adaptive Front Lighting System Description and Operation
Description
AFLS Unit (ECU)
AFLS located in Cockpit Module is provided information of vehicle. (steering wheel signal,vehicle speed, inclination of vehicle)
Based on provided information, it calculates algorithm and adjust Low beam of H/Lamp.
It transmits driving information by using LIN prot ...
