Hyundai Elantra: Windshield Defrosting and Defogging / Manual Climate Control System

Hyundai Elantra. Manual Climate Control System

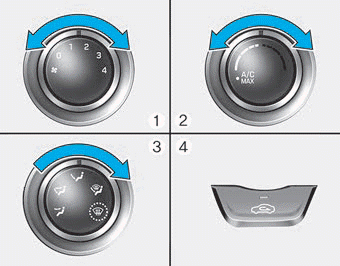

To defog inside windshield

1. Select any fan speed except “0” position.

2. Select desired temperature.

3. Select the Hyundai Elantra. Manual Climate Control System or Hyundai Elantra. Manual Climate Control System position.

4. The outside (fresh) air will be selected automatically. Additionally, the air conditioning will automatically operate if the mode is selected to the Hyundai Elantra. Manual Climate Control System position.

If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.

Hyundai Elantra. Manual Climate Control System

To defrost outside windshield

1. Set the fan speed to the highest (extreme right) position.

2. Set the temperature to the extreme hot position.

3. Select the Hyundai Elantra. Manual Climate Control System position.

4. The outside (fresh) air and air conditioning will be selected automatically.

Windshield Defrosting and Defogging
WARNING Windshield heating Do not use the or position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield ...

Automatic Climate Control System
To defog inside windshield 1. Select desired fan speed. 2. Select desired temperature. 3. Press the defroster button (). 4. The outside (fresh) air position will be selected automatically. If t ...
