Hyundai Elantra: Lubrication System / Oil Pan Components and Components Location

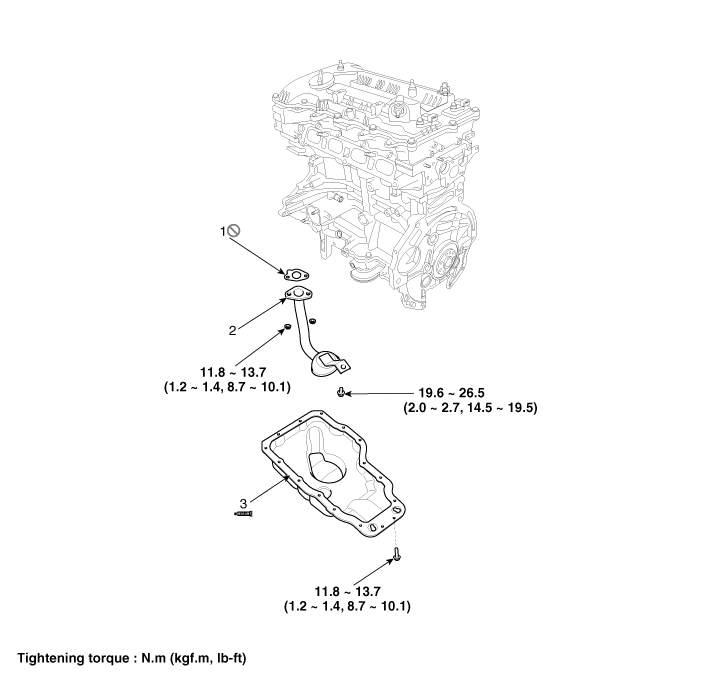

Components

1. Oil screen gasket
2. Oil screen
3. Oil pan

Engine Oil Repair procedures
Oil And Filter Replacement     • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation ...

Oil Pan Repair procedures
Removal 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Drain engine oil. (Refer to Lubrication System - "Engine Oil") 3. R ...
