Hyundai Elantra: ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / ESC(Electronic Stability Control) System / Rear Wheel Speed Sensor Components and Components Location

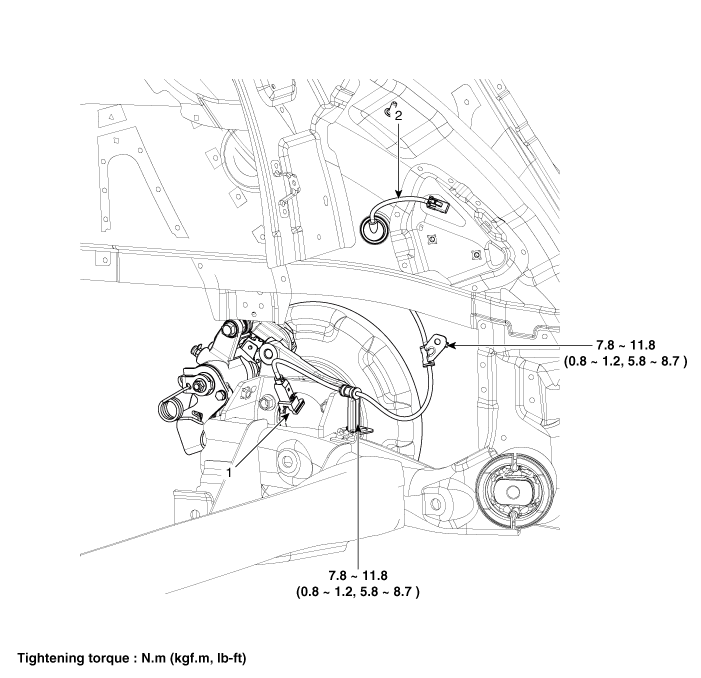

Components

1. Front wheel speed sensor
2. Front wheel speed sensor cable

Front Wheel Speed Sensor Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 12 ...

Rear Wheel Speed Sensor Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 127 ...
