Hyundai Elantra: Maintenance / Scheduled Maintenance Services

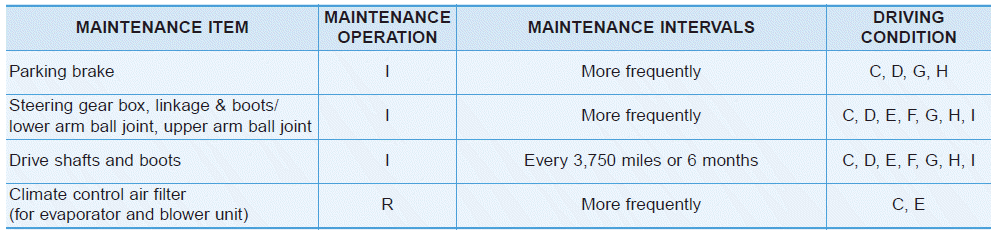

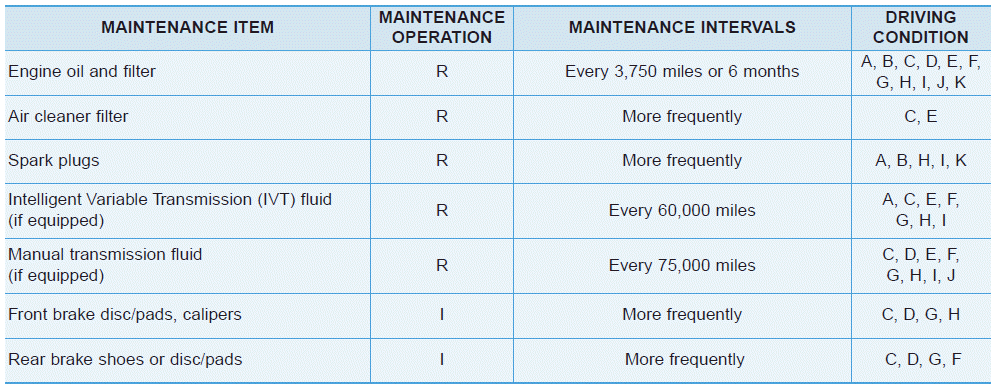

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the following conditions apply. If any of the following conditions apply, you must follow the Maintenance Under Severe Usage Conditions.
- Repeated short distance driving.
- Driving in dusty conditions or sandy areas.
- Extensive use of brakes.
- Driving in areas where salt or other corrosive materials are used.
- Driving on rough or muddy roads.
- Driving in mountainous areas.
- Extended periods of idling or low speed operation.
- Driving for a prolonged period in cold temperatures and/or extremely humid climates.
- More than 50% driving in heavy city traffic during hot weather above 90°F (32°C).
For additional information or assistance see your authorized HYUNDAI dealer.
Owner Maintenance Schedule
When you stop for fuel:
Check the engine oil level.
Check coolant level in the engine coolant reservoir.
Check the windshield washer fluid level.
Check for low or under-inflated tires.
WA ...

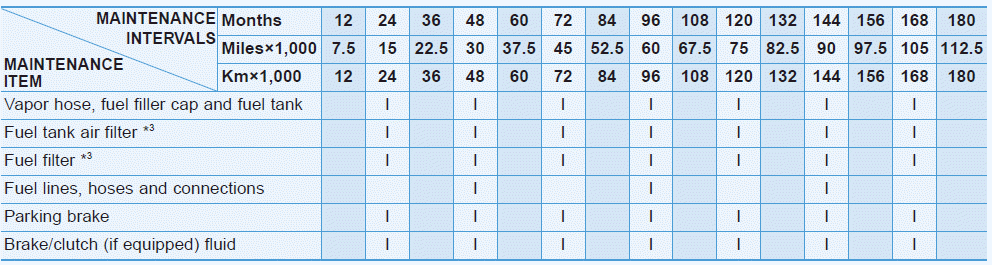

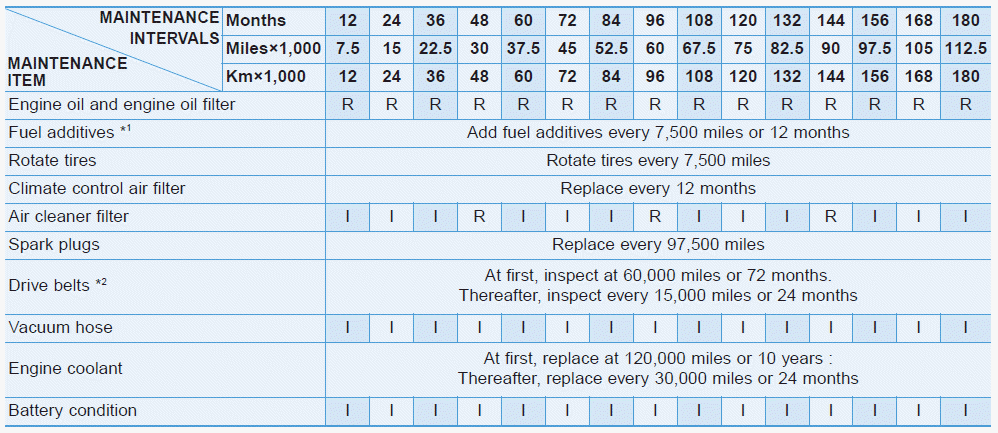

Normal Maintenance Schedule
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
*1 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is
recommended. Additives are ...
