Description

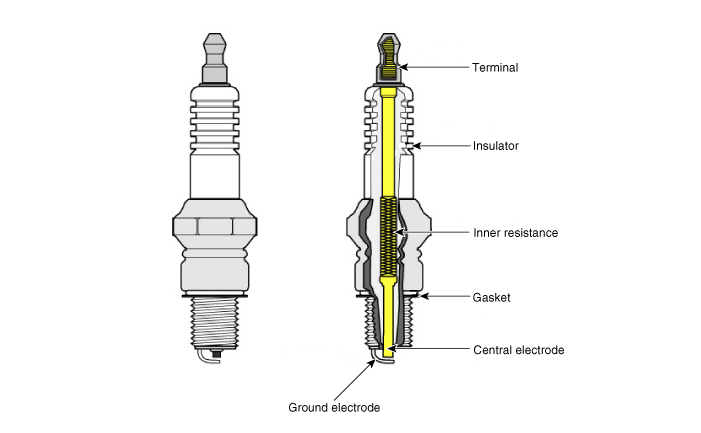

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Ignition Coil Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the engine cover. 3. Disconnect the ignition coil connector (A). • ...

Spark Plug Specifications

Specification ItemSpecificationTypeELR9IQP9+Gap0.8 ~ 0.9 mm (0.0314 ~ 0.0354 in.) ...
