Hyundai Elantra: Sunroof / Sunroof Deflector Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Deflector Repair procedures

Replacement

1.	Open the glass fully.

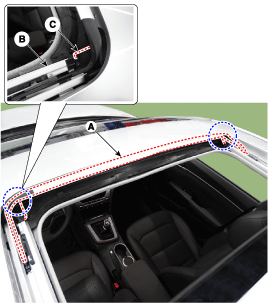

2.	Remove the mounting pins (C), from the frame (B), and then remove the deflector (A).

3.	To install, reverse the removal procedure.
