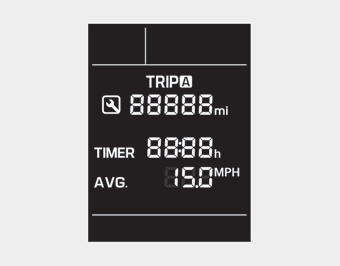

Hyundai Elantra: Conventional Cluster / Trip A/B

Tripmeter (1)
- The tripmeter is the total driving distance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 mi. or km
- To reset the tripmeter, press the RESET button on the steering wheel for
more than 1 second when the tripmeter is displayed.
Elapsed Time (2)
- The elapsed time is the total driving time since the last elapsed time reset.
- Time range (hh:mm): 00:00 ~ 99:59
- To reset the elapsed time, press the RESET button on the steering wheel
for more than 1 second when the elapsed time is displayed.
Information
The elapsed time will continue to be counted while the engine is still running
(for example, when the vehicle is in traffic or stopped at a stop light.)
Average Vehicle Speed (3)
- The average vehicle speed is calculated by the total driving distance and
driving time since the last average vehicle speed reset.
- Speed range: 0~160 MPH or 0~240 km/h
- To reset the average vehicle speed, press the RESET button on the steering
wheel for more than 1 second when the average vehicle speed is displayed.
Information
- The average vehicle speed is not displayed if the driving distance has
been less than 0.19 miles (300 meters) since the ignition switch or the Engine
Start/Stop button was turned to ON.
- The average vehicle speed will continue to be calculated and will start
to decrease if the vehicle is stopped while the engine is still running (for
example, when the vehicle is in traffic or stopped at a stop light.)
Range (1)
The range is the estimated distance the vehicle can be driven with the remaining
fuel in the fuel tank.
- Distance range:
1 ~ 9999 mi. or 1 ~ 9999 km
If the estimated distance ...
If the remaining mileage or time reaches 900 miles (1,500 km) or 30 days, the
service symbol () will blink for several
seconds each time you set the ignition switch or Engine Start/Stop button t ...
Other information:
Hyundai Elantra AD (2016-2020) Service Manual: Idler Repair procedures
Removal and Installation
1.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
2.
Remove the idler (A).
Tightening torque :
39.2 ~ 49.0N.m (4.0 ~ 5.0kgf.m, 28.9 ~ 36.2lb-ft)
3.
Install in the reverse order of removal.
Inspection
Check the idler for excessive oil le ...
