Hyundai Elantra: Valve Body System / Valve Body Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Valve Body System / Valve Body Repair procedures

Replacement

If necessary replace the valve body or solenoid valves, hydraulic adjustment is needed, replace the automatic transaxle assembly.

After the automatic transaxle assembly exchange, input the hydraulic calibration information of TCM.

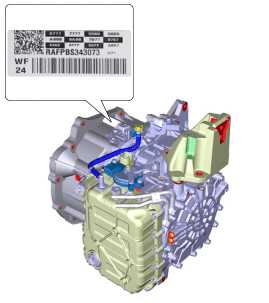

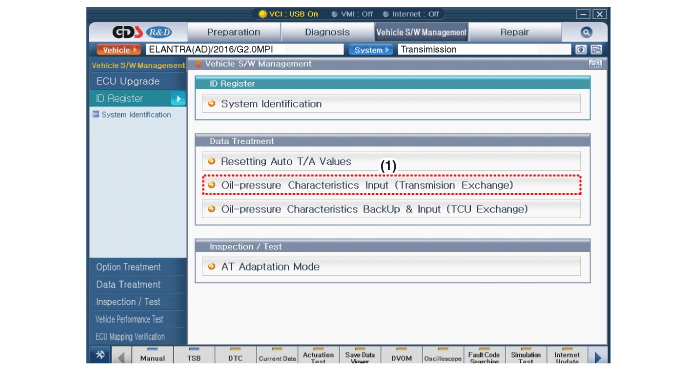

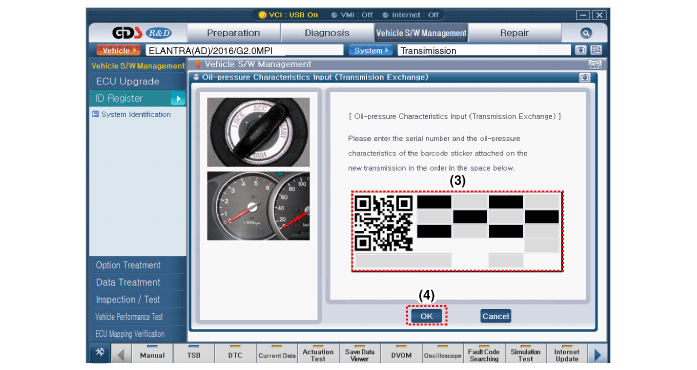

1.	Perform the oil pressure characteristics input procedure. • Oil pressure characteristics(bar code) location • Oil-pressure characteristics input (Transmision exchange)

Valve Body Components and Components Location

Components Location 1. Solenoid valve support bracket2. Solenoid valve support bracket (Directly solenoid)3. Line Pressure Control Solenoid Valve4. Torque Convert Control Solenoid Valve (T/CON)5. ...

Clutch & Brake

...
