Hyundai Elantra: General Information / Warning And Caution Labels

Hyundai Elantra AD (2016-2020) Service Manual / General Information / Warning And Caution Labels

General Information

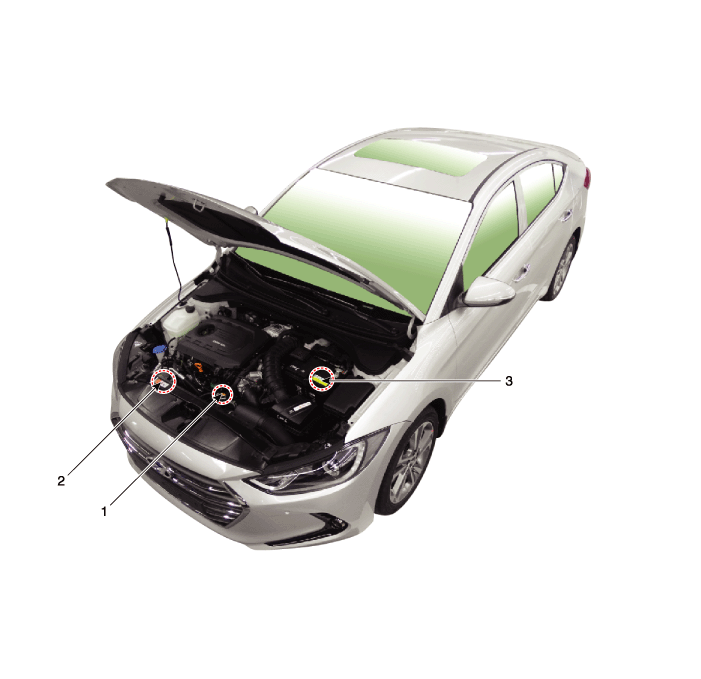

1. Radiator cap caution
2. Fan caution

3. Battery caution

Attention

Srs Vehicle
This car is equipped with a supplemental restraint system. To provide continued reliability, certain elements of the supplemental restraint system shall be serviced or replaced by an authorized dealer ten years after vehicle label.For further information. see owner's manual.

Side Air Bag
This vehicle is equipped with a side airbag system. To provide continued reliability, certain elements of the side airbag system shall be serviced or vehicle manufacturing date shown on the certification label. For further information, refer to the owner’s manual.

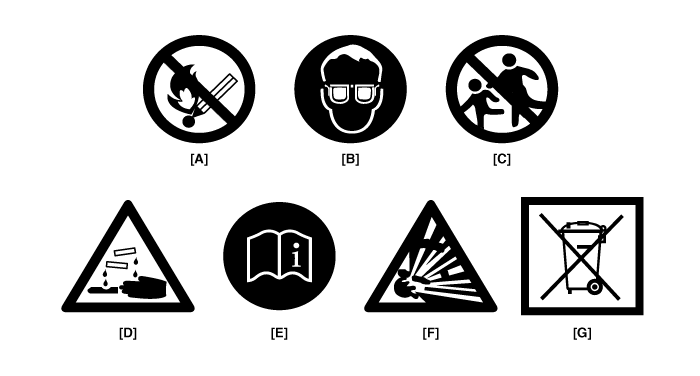

Battery Caution Label Description

Warning / Caution Label (Cont'd)

A.
Keep lighted cigarettes and all other flames or sparks away from the battery.

B.
Wear safety glasses for eye protection when charging or working near a battery. Always provide ventilation when working in an enclosed space.

•	When lifting a plastic-cased battery, excessive pressure could cause acid leakage, resulting in personal injury. Lift a battery with a battery carrier or with your hands on opposite corners.

•	Never attempt to change the battery when the battery cables are connected.

•	The electrical ignition system works with high voltage. Never touch these components with the engine running or the ignition switch on.

C.
Keep batteries out of the reach of children because batteries contain highly corrosive SULFURIC ACID. Do not allow battery acid to contact your skin, eyes, clothing or paint finish.

D.
If any electrolyte gets into your eyes, rinse off your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth until medical attention is received.
If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or a burning sensation, get medical attention immediately.

E.
Always read the following instructions carefully before handling a battery.

F.
Hydrogen, which is a highly combustible gas,is always contained in battery cells and may explode if ignited.

G.
An improperly disposed battery can be harmful to the environment and human health.
Always confirm local regulations for battery disposal.

Battery Handling and Storage

Battery

•	Batteries should be stored in cool, dry (27 degrees Celsius) places and out of direct sunlight.

•

MF batteries are tightly sealed to prevent acid leakage.

However, tilting the battery to an angle of 45 degrees can cause acid to leak through the vents on the sides. Therefore, batteries should always be stored in their upright positions. Do not place any solution or objects (i.e. conductors) on top of the battery.

•	It is extremely dangerous to use tools, such as hammers, on the battery terminals when connecting cables to the mounted battery.

Battery installed in vehicle

•	When storing the vehicle for long periods of time, make sure to remove the battery fuse from the junction box to prevent natural discharging.

•

In case of the vehicle stored with the battery fuse connected, run the engine for battery charging within one month from the start of vehicle storage.

In case of the vehicle stored with the battery fuse disconnected, run the engine for battery charging within three months from the start of vehicle storage.

•	After reconnecting or recharging a discharged battery, the ESP OFF indicator may illuminate.

•	In this case, turn the handle half way to the left and right whilst the ignition switch is in the ON position.

•	Then, restart the engine after the ignition is OFF.

•	The ESP OFF indicator may turn OFF.

•	If the ESP OFF indicator does not turn OFF, have the system checked by referring to DTC. (Refer to the BR group.)
