Hyundai Elantra: Convenient Features of Your Vehicle / Windows

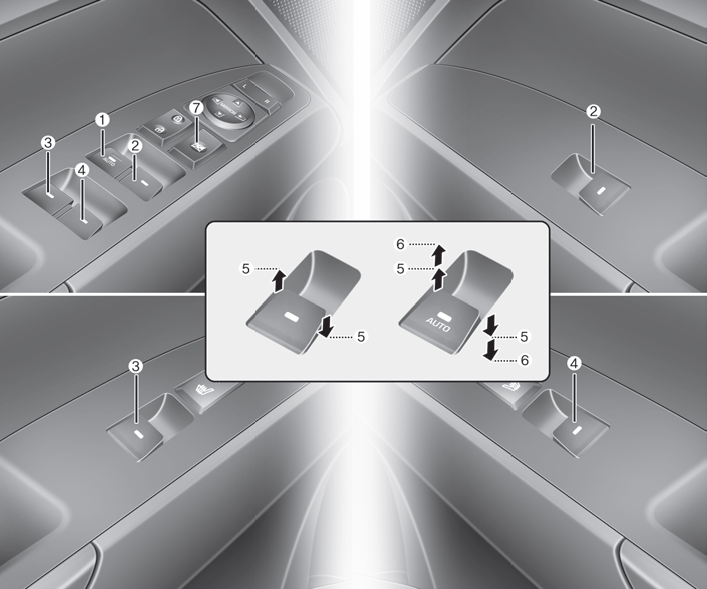

(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
Reverse Parking Aid Function
When you move the shift lever to the R (Reverse) position, the side view mirror(s)
will rotate downwards to aid with driving in reverse. The position of the side view
mirror switch (1) determine ...
Power Windows
The ignition switch must be in the ON position to be able to raise or lower the
windows. Each door has a Power Window switch to control that door's window. The
driver has a Power Window Lock s ...
