Hyundai Elantra: Seat Electrical / Air Ventilation Seat Schematic Diagrams

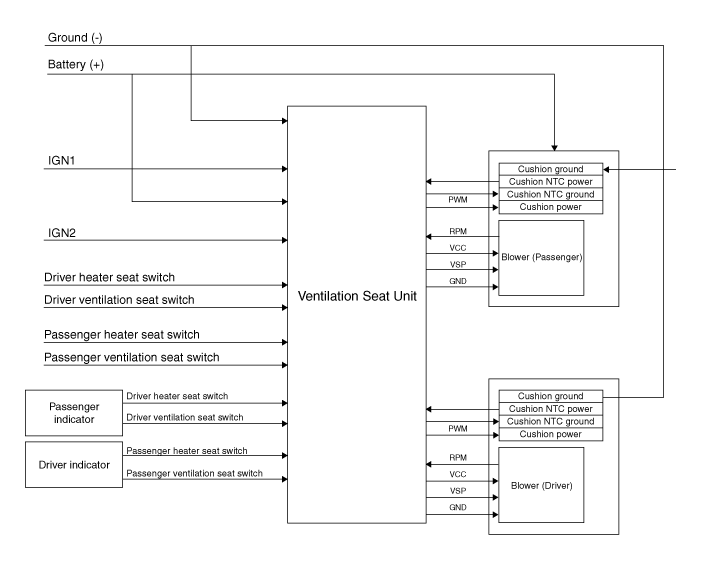

Circuit Diagram

Air Ventilation Seat Components and Components Location
Component Location [Front Ventilation Seat] 1. Ventilation seat unit (Assist seat only)2. Ventilation seat blower ...

Air Ventilation Seat Repair procedures
Removal [Ventilation Blower] 1. Disconnect the negative (-) battery terminal. 2. Remove the front seat. (Refer to Body - "Front Seat Assembly") 3. Remove the blower duct. 4. Remove ...
