Hyundai Elantra: Charging System / Alternator Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Electrical System / Charging System / Alternator Components and Components Location

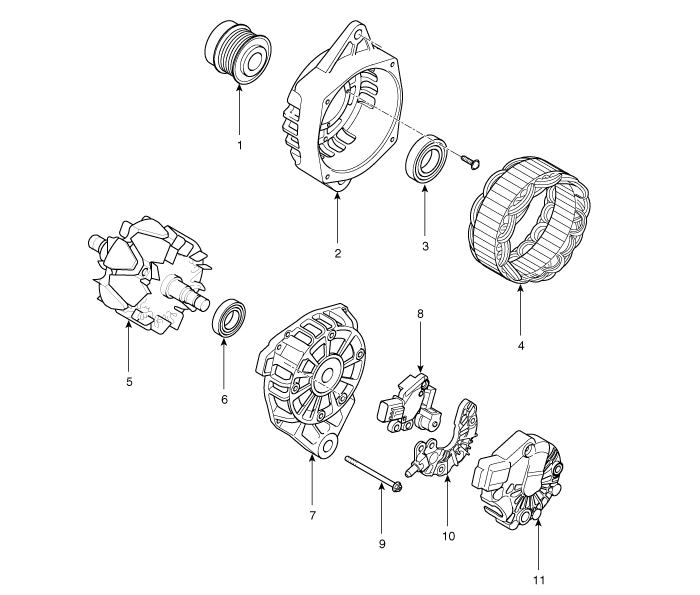

Components

1. OAD (Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing

7. Rear Bracket
8. Brush Holder Assembly
9. Through Bolt
10. Rectifier Assembly
11. Rear Cover

Alternator Specifications

Specification ItemSpecificationRated voltage 13.5V, 150A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC Regulator built-in type Regulator Setting Voltage External mode Re ...

Alternator Schematic Diagrams

Circuit Diagram • COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alternator via a PWM signal.(High voltage: 4V or h ...
