Hyundai Elantra: Automatic Transaxle Cooling System / ATF Warmer Components and Components Location

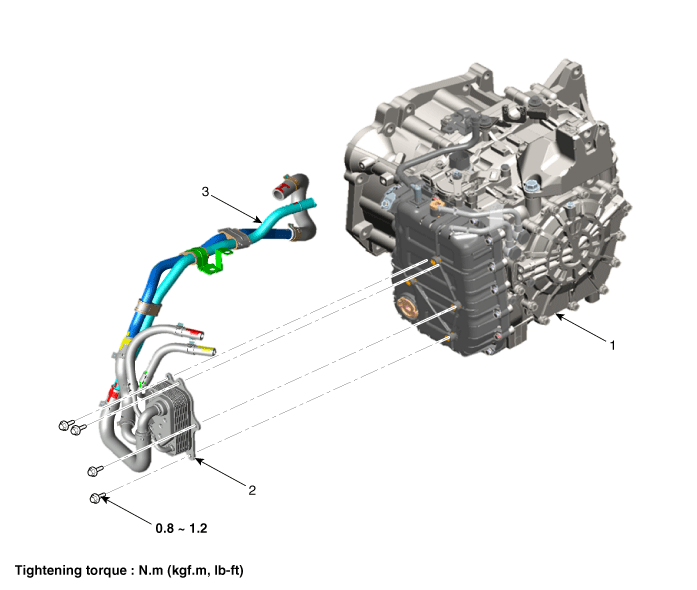

Components Location

1. Automatic transaxle
2.ATF warmer

3. Heater hose & pipe

ATF Warmer Description and Operation
Description • The ATF warmer is mounted on the valve body cover. • Engine coolant is used for circulating heat in order to heat and cool t he transaxle oil. • Rapidly elevate ...

ATF Warmer Repair procedures
Removal 1. Remove the under cover. (Refer to Engine Mechanical System - "Engine room under cover") 2. Loosen the drain plug and drain the engine coolant. (Refer to Cooling System - "Coolan ...
