Hyundai Elantra: Blind Spot Detection System / Blind Spot Detection Unit Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Unit Schematic Diagrams

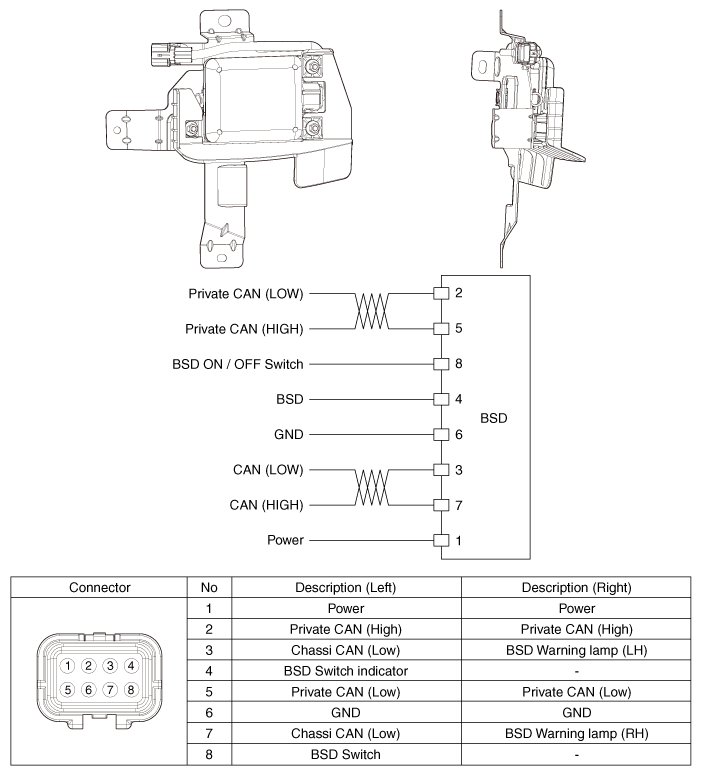

Circuit Diagram

Repair procedures

Diagnosis with GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS ...

Blind Spot Detection Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting nuts. &nb ...
