Hyundai Elantra: Tire Pressure Monitoring System (TPMS) / Check Tire Pressure
â– Supervision cluster

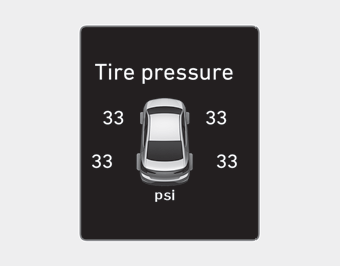

- You can check the tire pressure in the Assist Mode on the cluster. Refer to the "LCD Display Mode" section in chapter 3.
- A "Drive to display" message will appear for the first few minutes of driving after initial engine start up. If the tire pressure is not displayed after a few minutes of driving, check the tire pressures.
- The displayed tire pressure values may differ from those measured with a tire pressure gauge.
- You can change the tire pressure unit in the User Settings Mode on the cluster.
- psi, kpa, bar (Refer to the "User Settings Mode" section in chapter 3).
Tire Pressure Monitoring System (TPMS)
â– Supervision cluster
(1) Low Tire Pressure / TPMS Malfunction Indicator Lamp
(2) Low Tire Pressure / Tire Pressure Monitor / TPMS Malfunction Display (shown
on the cluster LCD display) ...
Tire Pressure Monitoring System
WARNING
Over-inflation or under-inflation can reduce tire life, adversely affect vehicle
handling, and lead to sudden tire failure that may cause loss of vehicle control
resulting in an accident. ...
