Hyundai Elantra: Timing System / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Timing System / Components and Components Location

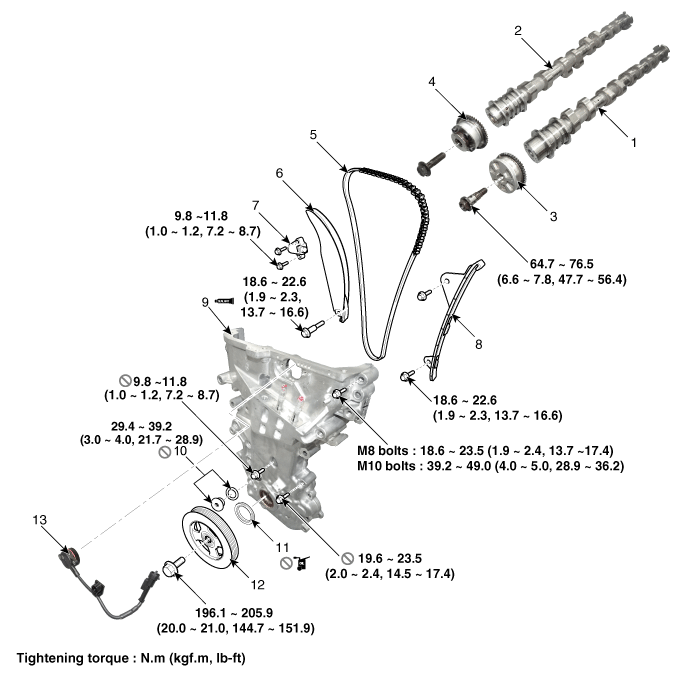

Components

1. Intake camshaft
2. Exhaust camshaft
3. Intake CVVT assembly
4. Exhaust CVVT assembly
5. Timing chain
6. Timing chain tensioner arm
7. Timing chain tensioner

8. Timing chain guide
9. Timing chain cover
10. Service plug bolt & gasket
11. Front oil seal
12. Crankshaft damper pulley
13. Intermediate lock CVVT actuator
