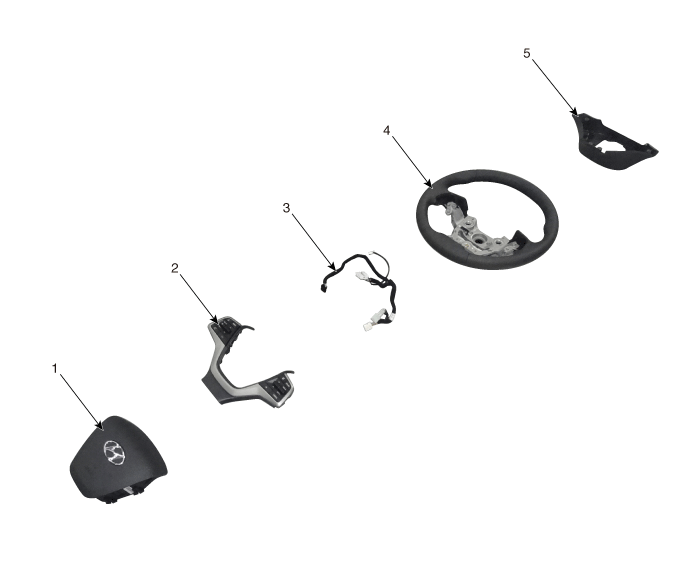

Components |
1. Driver airbag module(DAB) 2. Remote contorl switch 3. wiring | 4. Steering wheel 5. Lower cover |
Hyundai Elantra AD (2016-2020) Service Manual: Audio Unit Components and Components Location
Components
[TFT Type]
Connector Pin Information
NoConnector AConnector BConnector C1Rear left speaker (+)Can (High)- 2Front left speaker (+)-- 3Front right speaker (+)-Camera GND 4Rear right speaker (+)Steering wheel remoteCamera video input 5--- 6-USB D (+)- 7-USB ...
Hyundai Elantra AD (2016-2020) Service Manual: Memory power seat unit Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver seat assembly.
(Refer to Body - "Front Seat Assembly")
3.
Loosening the IMS unit mounting screws.
4.
Disconnect the IMS module connectors (B) and then remove the IMS unit (A).
Installation
1.
Install ...
