Inspection

[Power Window Switch]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver door trim. (Refer to Body - "Front Door Trim")

3.	Disconnect the power mirror switch connector from the door trim.

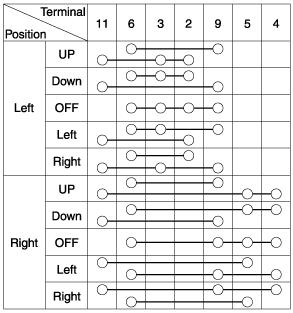

4.	Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

3.	Remove the power window assembly (A).

Installation

1.	Install the power window switch assembly.

2.	Install the front door trim after connect the connector.

Connect the negative (-) battery terminal.

•	Make sure that the switch connectors are plugged in properly.

•	Check the power door mirror system for normal operation.
