Hyundai Elantra: Body Electrical System / Power Door Mirrors

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Door Mirrors

Components and Components Location

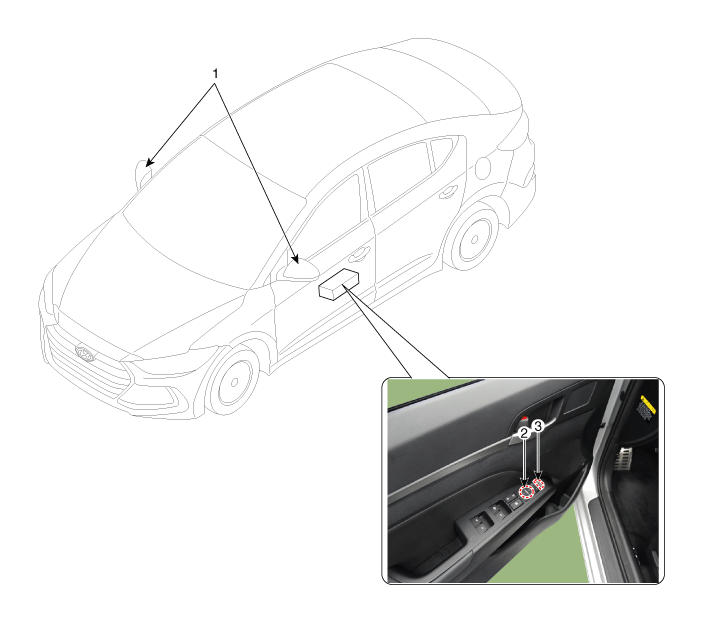

Component Location

1. Power door mirror
2. Power door mirror switch

3. Power folding mirror switch

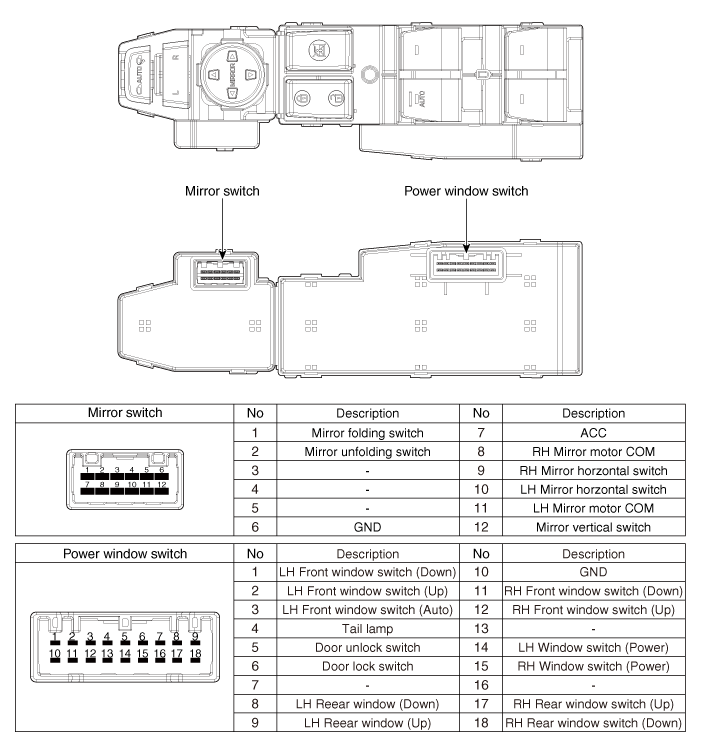

Power Door Mirror Switch Components and Components Location

Components

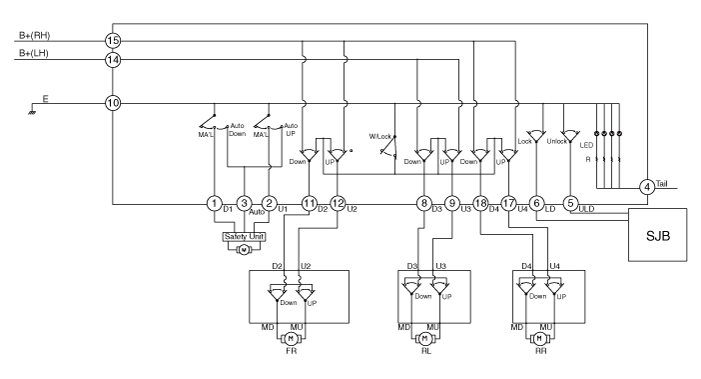

Power Door Mirror Switch Schematic Diagrams

Circuit Diagram

Power Door Mirror Switch Repair procedures

Inspection

[Power Window Switch]

1.	Disconnect the negative (-) battery terminal.

2.	Remove the driver door trim. (Refer to Body - "Front Door Trim")

3.	Disconnect the power mirror switch connector from the door trim.

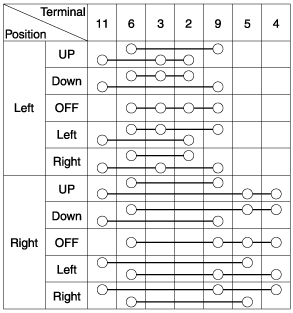

4.	Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door trim. (Refer to Body - "Front Door Trim")

3.	Remove the power window assembly (A).

Installation

1.	Install the power window switch assembly.

2.	Install the front door trim after connect the connector.

Connect the negative (-) battery terminal.

•	Make sure that the switch connectors are plugged in properly.

•	Check the power door mirror system for normal operation.

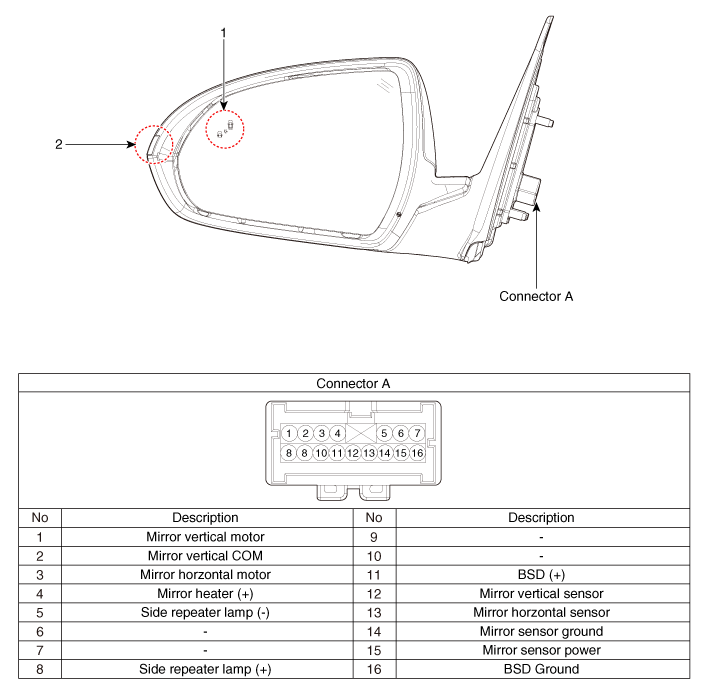

Power Door Mirror Actuator Components and Components Location

Components

1. BSD Indicator

2. Side repeater lamp

Power Door Mirror Actuator Repair procedures

Inspection

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front door quadrant inner cover (A).

3.	Disconnect the power door mirror connector from the harness.

4.	Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly. [Mirror Control (LH/RT)] [Puddle Lamp] [BSD Indicator] [Mirror Heater] [Side Repeater Lamp]
