Hyundai Elantra: Rear Window Glass / Components and Components Location

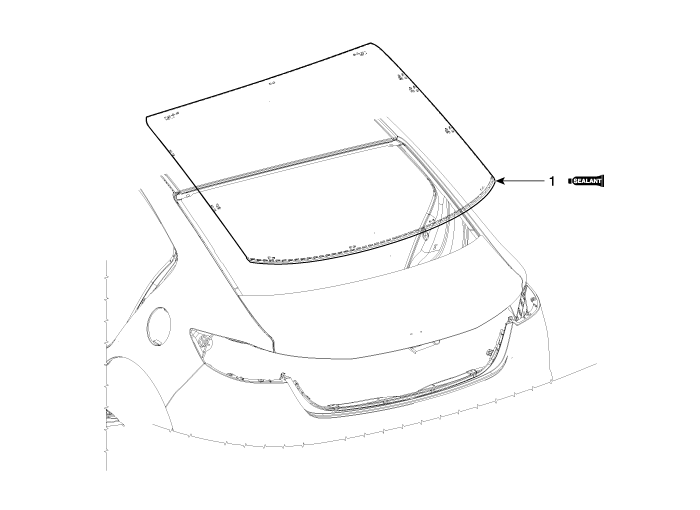

| Components |
| 1. Rear window glass |
Repair procedures
Removal
•
Put on gloves to protect your hands.
•
Use seat covers to avoid damaging any surfaces.
1.
Remove the roof side molding.
...
