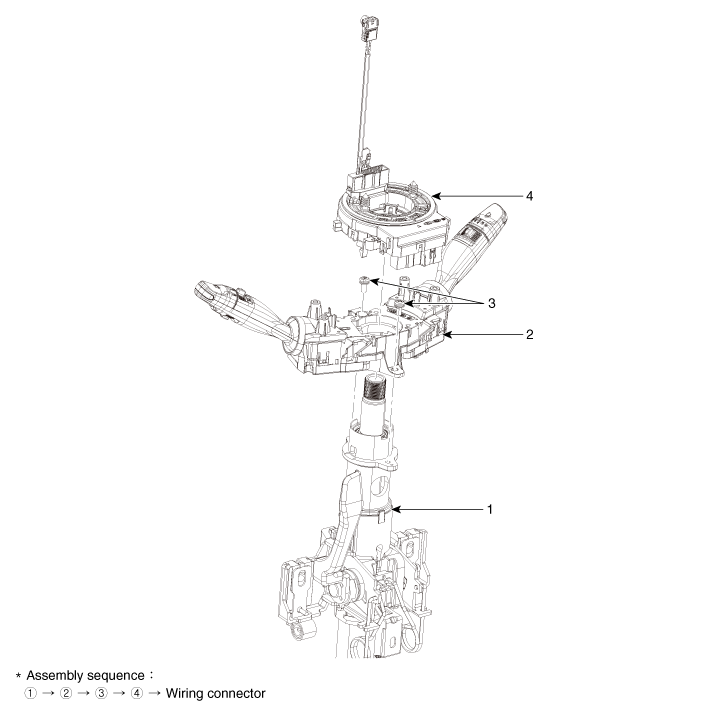

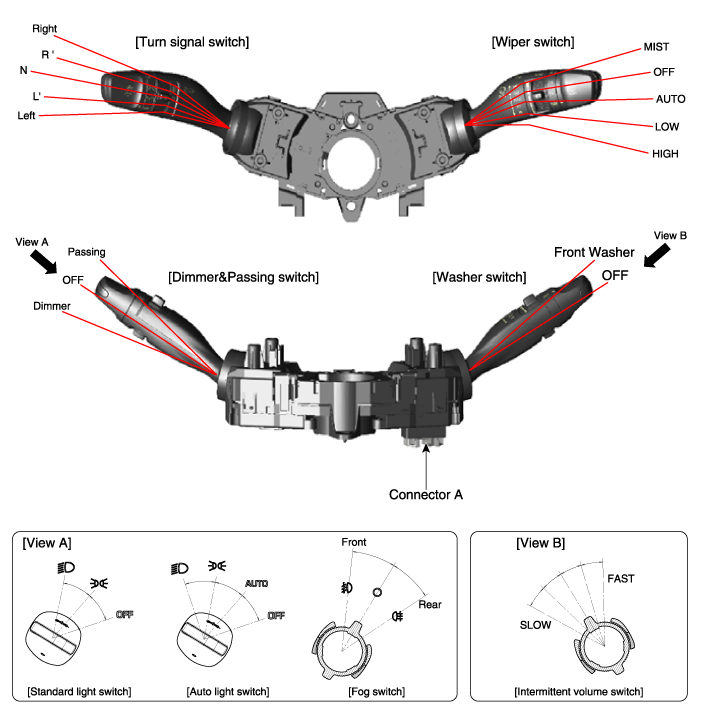

Component

1. Steering column
2. Multifunction switch

3. Screw
4. Clock spring

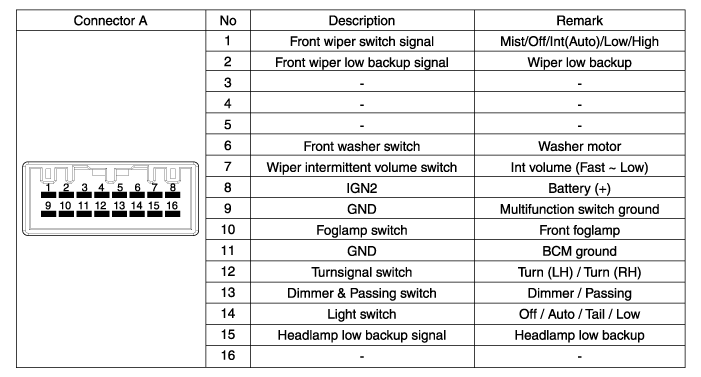

Specifications

Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-40 ~ +176°F (-40°C ~ +80°C)Rated loadWasherWasher : 6A (Motor load) ...

Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steering Wheel") 3. Remove the steering column upper and lower shrouds ...
