Hyundai Elantra: Cylinder Block / Crankshaft Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cylinder Block / Crankshaft Components and Components Location

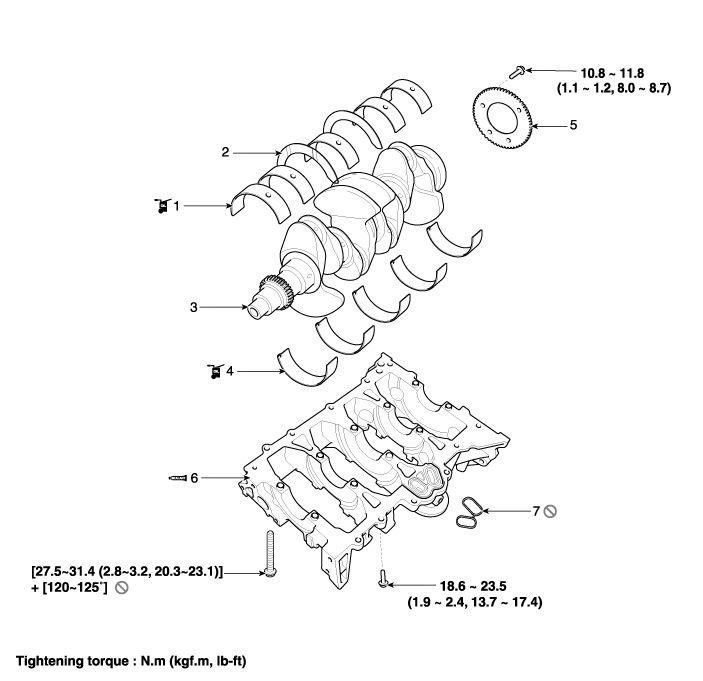

Components

1. Crankshaft upper bearing
2. Crankshaft thrust bearing
3. Crankshaft
4. Crankshaft lower bearing

5. Crankshaft position sensor (CKPS) wheel
6. Lower crankcase
7. Gasket

Piston and Connecting Rod Repair procedures

Disassembly Engine removal is required for this procedure. • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait u ...

Crankshaft Repair procedures

Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait until the engine coolant temperature drops belo ...
