Hyundai Elantra: ESC(Electronic Stability Control) System / Description and Operation
Optimum driving safety now has a name : ESC, the Electronic Stability Program.
ESC recognizes critical driving conditions, such as panic
reactions in dangerous situations, and stabilizes the vehicle by
wheel-individual braking and engine control intervention with no needfor
actuating the brake or the gas pedal.

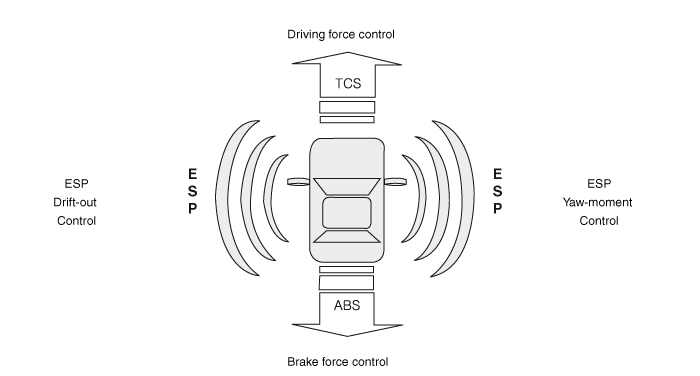

ESC adds a further function known as Active Yaw Control (AYC)
to the ABS, TCS, EBD and ESC functions. Whereas the ABS/TCS function
controls wheel slip during braking and acceleration and, thus, mainly
intervenes in the longitudinal dynamics of the vehicle, active yaw
control stabilizes the vehicle about its vertical axis.
This is achieved by wheel individual brake intervention and
adaptation of the momentary engine torque with no need for any action to
be taken by the driver.
ESC essentially consists of three assemblies : the sensors, the electronic control unit and the actuators.
Of course, the stability control feature works under all
driving and operating conditions. Under certain driving conditions, the
ABS/TCS function can be activated simultaneously with the ESC function
in rESConse to a command by the driver.
In the event of a failure of the stability control function, the basic safety function, ABS, is still maintained.
Description of ESC Control
ESC system includes ABS/EBD, TCS and AYC (Active yaw control) function.
ABS/EBD function : The ECU changes the active sensor signal
(current shift) coming from the four wheel sensors to the square
waveform.By using the input of above signals, the ECU calculates the
vehicle speed and the acceleration & deceleration of the four
wheels.And, the ECU judges whether the ABS/EBD should be actuated or
not.
TCS function prevents the wheel slip of drive direction by
adding the brake pressure and engine torque reduction via CAN
communication.TCS function uses the wheel speed sensor signal to
determine the wheel slip as far as ABS function.
AYC function prevents unstable maneuver of the vehicle. To
determine the vehicle maneuver, AYC function uses the maneuver sensor
signals(Yaw Rate Sensor, Lateral Acceleration Sensor, Steering Wheel
Angle Sensor).
If vehicle maneuver is unstable (Over Steer or Under Steer),
AYC function applies the brake pressure on certain wheel, and send
engine torque reduction signal by CAN.
After the key-on, the ECU continually diagnoses the system
failure. (self-diagnosis)If the system failure is detected, the ECU
informs driver of the system failure through the BRAKE/ABS/ESC warning
lamp. (fail-safe warning)

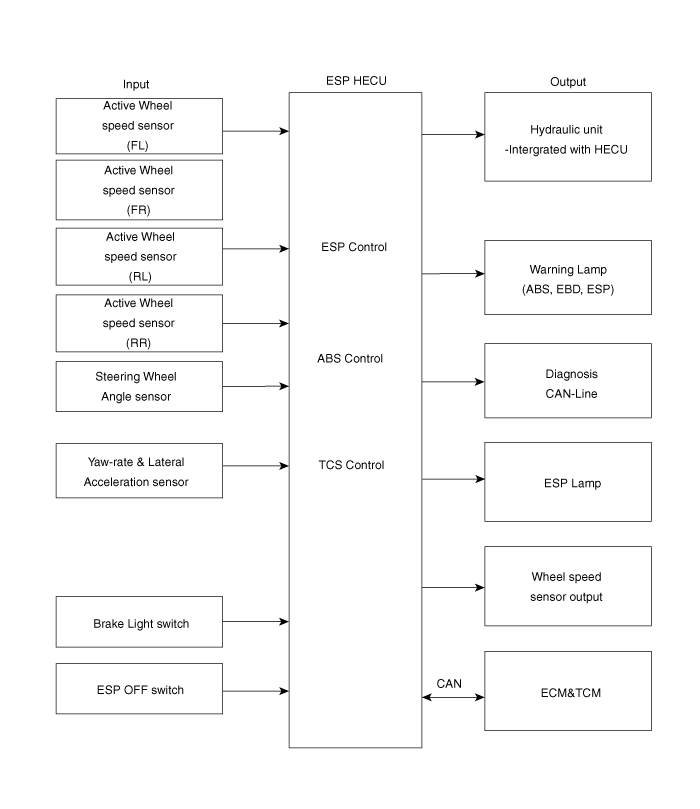

Input and Output Diagram
1. |
STEP 1
The ESC analyzes the intention of the driver. |
2. |
STEP 2
It analyzes the movement of the ESC vehicle. |
3. |
STEP 3
The HECU calculates the required strategy, then actuates the
appropriate valves and sents torque control requests via CAN to maintain
vehicle stability. |
ESC Operation Mode

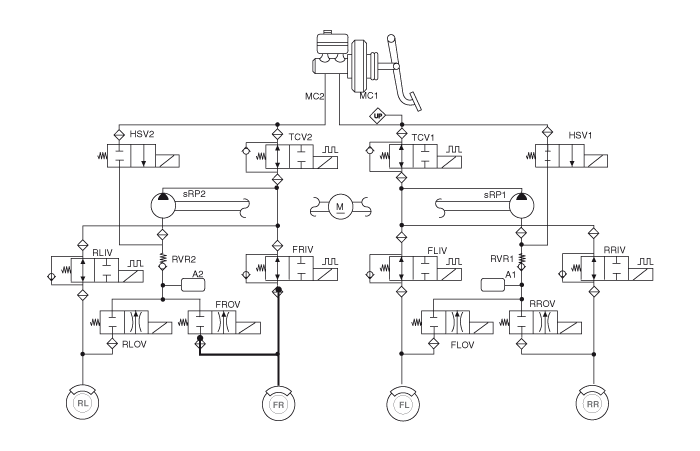

1. |
ESC Non-operation-Normal braking.
| Inlet valve(IV)
| Outlet valve(OV)
| Traction Control Valve(TCV)
| High pressure switch valve(HSV)
| Return pump
| Normal braking
| Open
| Close
| Open
| Close
| OFF
|
• |
TCV : Traction Control Valve |
• |
HSV : High pressure Switch Valve |
|
|

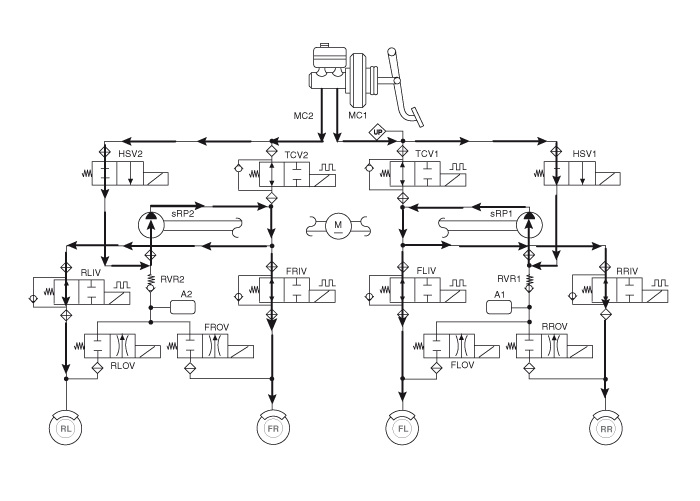

2. |
ESC Increase Mode
| Inlet valve(IV)
| Outlet valve(OV)
| Traction Control Valve(TCV)
| High pressure switch valve(HSV)
| Return pump
| Normal braking
| Open
| Close
| Close(Partial)
| Open
| ON(Motor speed control)
|
• |
TCV : Traction Control Valve |
• |
HSV : High pressure Switch Valve |
|
|

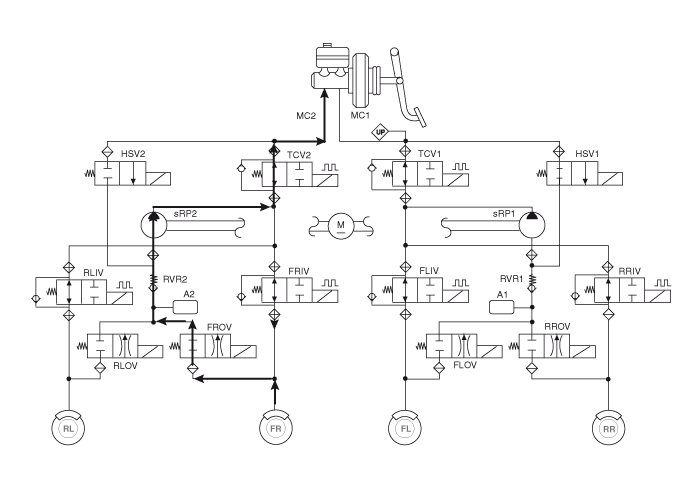

3. |
ESC Hold Mode ( FR is only controlled.)
| Inlet valve(IV)
| Outlet valve(OV)
| Traction Control Valve(TCV)
| High pressure switch valve(HSV)
| Return pump
| Normal braking
| Close
| Close
| Close(Partial)
| Open
| OFF
|
• |
TCV : Traction Control Valve |
• |
HSV : High pressure Switch Valve |
|
|

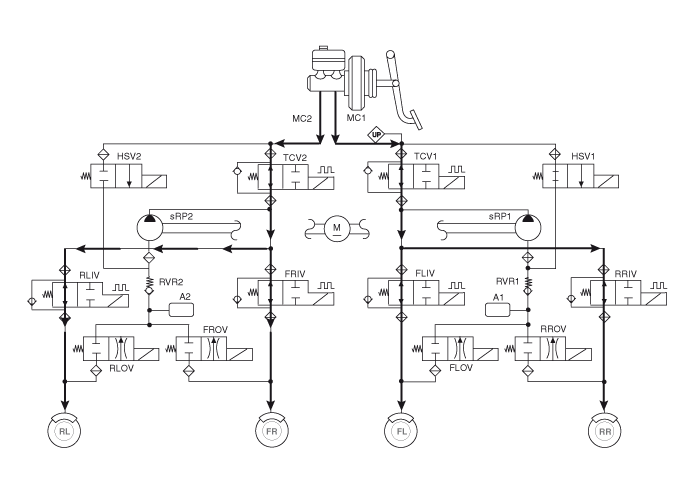

4. |
ESC Decrease Mode (FR is only controlled)
| Inlet valve(IV)
| Outlet valve(OV)
| Traction Control Valve(TCV)
| High pressure switch valve(HSV)
| Return pump
| Normal braking
| Close
| Open
| Close(Partial)
| Open
| ON(Motor speed low control)
|
• |
TCV : Traction Control Valve |
• |
HSV : High pressure Switch Valve |
|
|
ABS Warning lamp
The active ABS warning lamp indicates the self-test and failure status of the ABS. The ABS warning lamp shall be on:
- |
During the initialization phase after IGN ON. (continuously 3 seconds). |
- |
In the event of inhibition of ABS functions by failure. |
- |
During diagnostic mode. |
- |
When the ECU Connector is separated from ECU. |
EBD/Parking brake warning lamp
The active EBD warning lamp indicates the self-test and
failure status of the EBD. However, in case the Parking Brake Switch is
turned on, the EBD warning lamp is always turned on regardless of EBD
functions. The EBD warning lamp shall be on:
- |
During the initialization phase after IGN ON. (continuously 3 seconds). |
- |
When the Parking Brake Switch is ON or brake fluid level is low. |
- |
When the EBD function is out of order . |
- |
During diagnostic mode. |
- |
When the ECU Connector is separated from ECU. |
ESC Function/Warning Lamp (ESC System)
The ESC Function/Warning lamp indicates the self-test and failure status of the ESC.
The ESC Function/Warning lamp operates under the following conditions :
- |
During the initialization phase after IGN ON. (continuously 3 seconds). |
- |
In the event of inhibition of ESC functions by failure. |
- |
When the ESC control is operating. (Blinking - 2Hz) |
ESC OFF Lamp (ESC system)
The ESC OFF lamp indicates the self-test and operating status of the ESC.
The ESC OFF lamp is turned on under the following conditions :
- |
During the initialization phase after IGN ON. (continuously 3 seconds). |
- |
When driver turn off the ESC function by on/off switch. |
ESC On/Off Switch (ESC system)
The ESC On/Off Switch shall be used to toggle the ESC function between On/Off states based upon driver input.
The On/Off switch shall be a normally open, momentary contact switch.
Initial status of the ESC function is on and the switch is used to request an ESC status change.

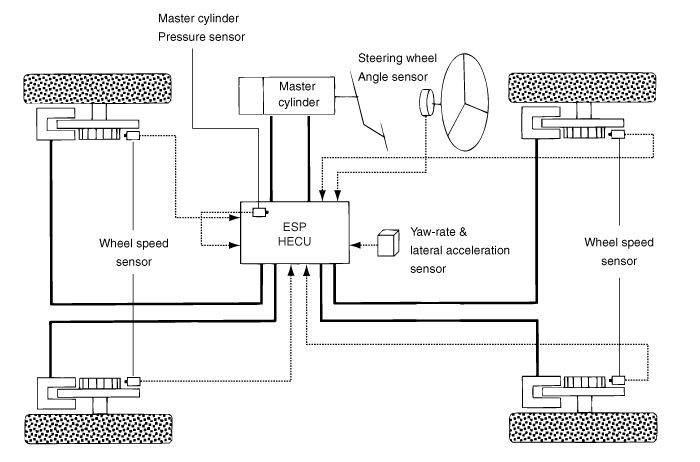

Components
1. ESC Control Module(HECU)2. Front Wheel Speed Sensor3. Rear Wheel Speed Sensor4. ABS Warning lamp5. EBD / Parking brake warning lamp
...
Schematic Diagrams
Terminal Function
Wire No.DesignationCurrentmaxmin13Ground for recirculation pump39 A10 A1Voltage supply for pump motor39 A10 A25Voltage supply for solenoid valves15 A2 A38Gro ...
