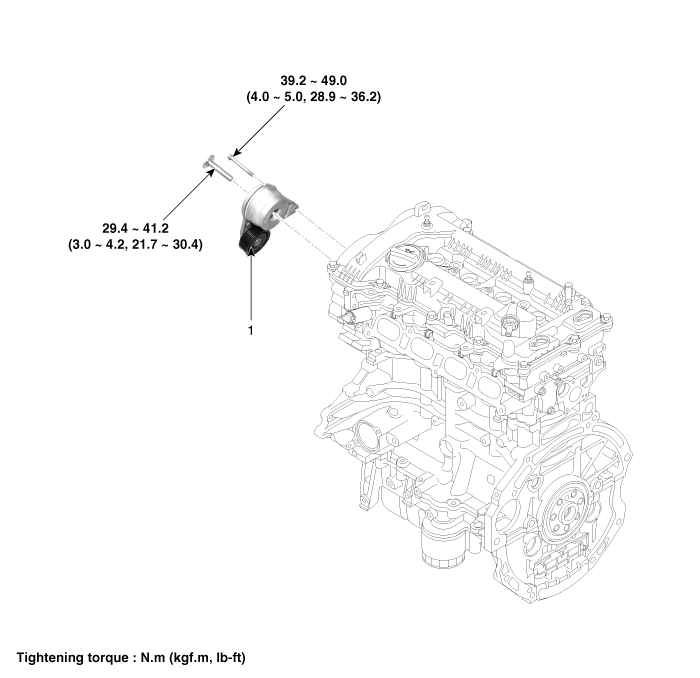

Components

1. Drive belt tensioner


Idler Repair procedures
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the idler (A). Tightening torque : 39.2 ~ 49.0N.m (4.0 ~ 5.0kgf.m, 28.9 ~ 36.2lb-ft) ...

Drive Belt Tensioner Repair procedures
Removal and Installation 1. Disconnect the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt tensioner (A). Tightening torque : center bolt : 29.4 ~ 41.2 N.m (3 ...
