Components

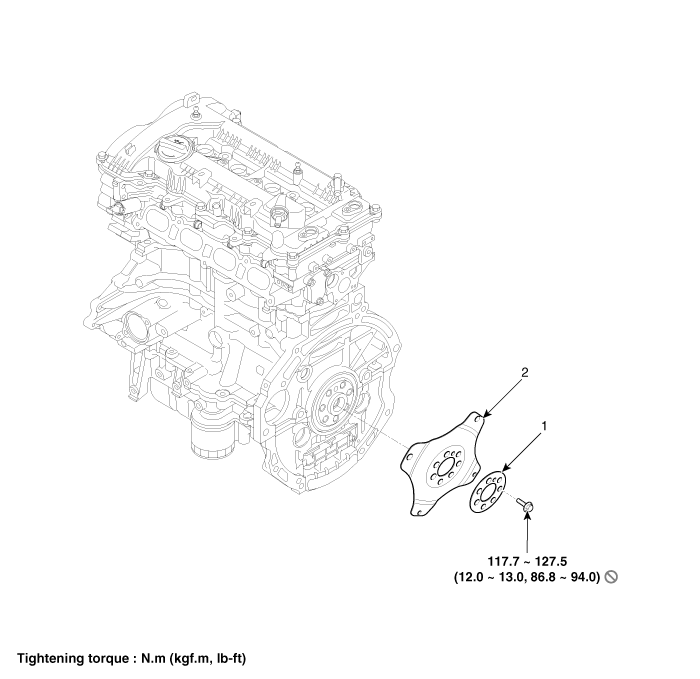

1. Adapter plate
2. Drive plate

Components and Components Location
Components 1.  Piston ring2.  Snap ring3.  Piston pin4.  Piston5.  Connecting rod 6.  Connecting rod upper bearing7.  Connecting rod lower bearing8.  Conne ...

Drive plate Repair procedures
Removal and Installation 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate (A) and the adapter plate (B). Tighteni ...
