Hyundai Elantra: Cooling System / Electric Thermostat (ECT) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cooling System / Electric Thermostat (ECT) Schematic Diagrams

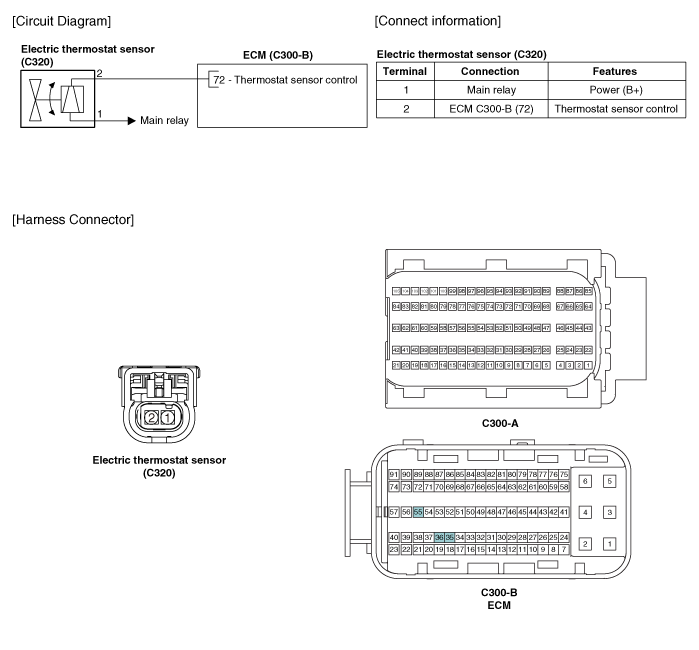

Circuit Diagram

Electric Thermostat (ECT) Description and Operation

Description and Operation Electric Thermostat (ECT) Overview Optimal control of coolant temperature depending on the driving conditions Operation Principle Electric Thermostat Structure ...

Electric Thermostat (ECT) Components and Components Location

Components 1. Water inlet fitting & Thermostat2. Bypass hose3. Heater pipe & hose assembly ...
