Hyundai Elantra: Cooling System / Electric Thermostat (ECT) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cooling System / Electric Thermostat (ECT) Components and Components Location

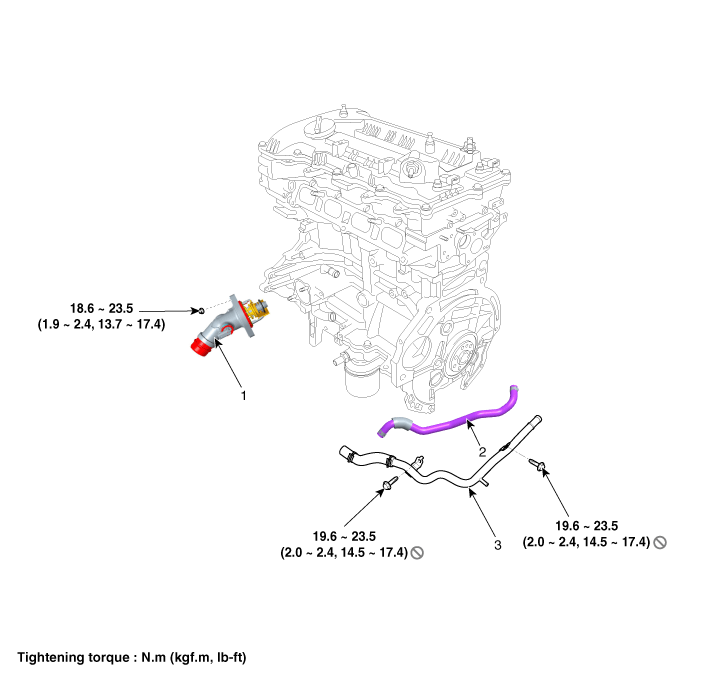

Components

1. Water inlet fitting & Thermostat
2. Bypass hose
3. Heater pipe & hose assembly

Electric Thermostat (ECT) Schematic Diagrams
Circuit Diagram ...

Electric Thermostat (ECT) Repair procedures
Removal and Installation     • Disassembly of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if ...
