Hyundai Elantra: Engine Control System / ETC (Electronic Throttle Control) System Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / ETC (Electronic Throttle Control) System Schematic Diagrams

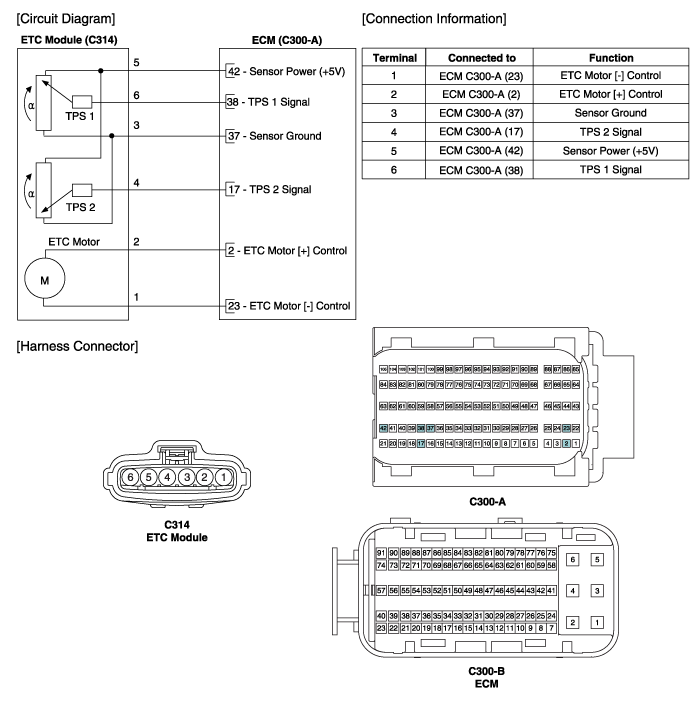

Circuit Diagram

ETC (Electronic Throttle Control) System Specifications
Specification Throttle angle (°)Output voltage (V) [Vref = 5.0V]TPS1TPS200.54.5100.964.05201.413.59301.873.14402.322.68502.782.23603.231.77703.691.32804.140.86904.60.41984.650.35C.T (0)0.54.5W. ...

ETC (Electronic Throttle Control) System Repair procedures
Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TPS 1 and 2 at C.T. and W.O.T. Thrott ...
