Hyundai Elantra: Controller / Heater & A/C Control Unit (DATC) Components and Components Location
Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Controller / Heater & A/C Control Unit (DATC) Components and Components Location

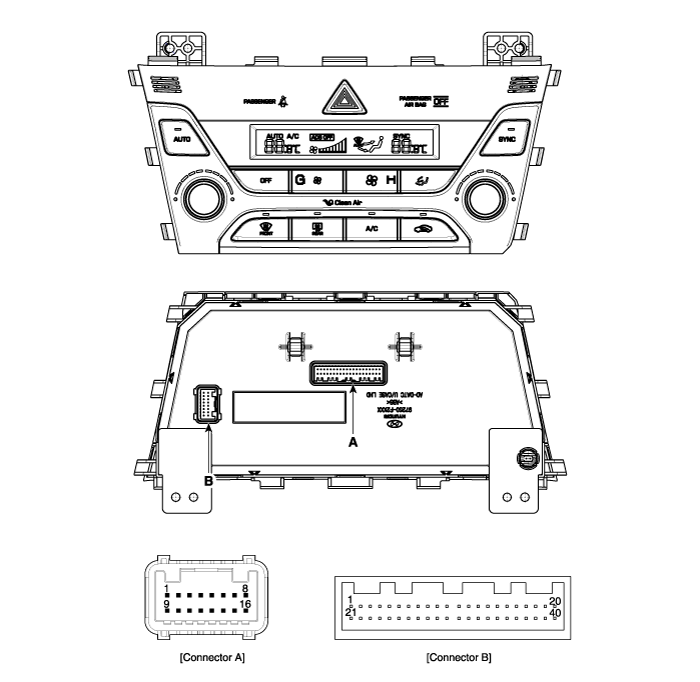

| Components |
| Connector | Pin NO | Function | Connector | Pin NO | Function |
| A | 1 | Battery (+) | A | 21 | IGN1 |
| 2 | IGN2 | 22 | ILL+ (TAIL) | ||
| 3 | ISG B+ | 23 | Sensor ground REF (+5V) | ||
| 4 | Mode control actuator (Vent) | 24 | C_CAN High | ||
| 5 | Mode control actuator (Def) | 25 | C_CAN Low | ||
| 6 | Mode control actuator (Feedback) | 26 | HTD (Rear defog indicator) | ||
| 7 | Intake actuator (Fresh) | 27 | - | ||
| 8 | Intake actuator (Recirculation) | 28 | - | ||
| 9 | Intake actuator (Feedback) | 29 | Passenger's temperature control actuator (Cool) | ||
| 10 | Defogging actuator (On) | 30 | Passenger's temperature control actuator (Warm) | ||
| 11 | Defogging actuator (Off) | 31 | Passenger's temperature control actuator (Feedback) | ||
| 12 | Defogging actuator (Feedback) | 32 | PTC Relay 2 | ||
| 13 | Rear defog switch | 33 | PTC Relay 3 | ||
| 14 | Hazard switch | 34 | PTC on signal | ||
| 15 | Driver's temperature control actuator (Cool) | 35 | Detent out (-) | ||
| 16 | Driver'st emperature control actuator (Warm) | 36 | - | ||
| 17 | Driver's temperature control actuator (Feedback) | 37 | ECV + | ||
| 18 | - | 38 | ECV - (Ground) | ||
| 19 | Sensor ground | 39 | ILL- (RHEO) | ||
| 20 | Ground | 40 | Ground |
| Connector | Pin NO | Function | Connector | Pin NO | Function |
| B | 1 | Blower motor (+) | B | 9 | PAB IGN1 |
| 2 | FET Drain (Feedback) | 10 | Clean signal | ||
| 3 | FET (Gate) | 11 | Ionizer diagnosis | ||
| 4 | SBR | 12 | AMB sensor (+) | ||
| 5 | Rear SBR (LH) | 13 | EVAP sensor (+) | ||
| 6 | Rear SBR (Center) | 14 | Auto defogging sensor signal | ||
| 7 | Rear SBR (RH) | 15 | Photo sensor (-)_LH | ||
| 8 | PAB Off signal | 16 | Photo sensor (-)_RH |
Heater & A/C Control Unit (Manual) Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box upper cover assembly.
(Refer to Body - "Glove Box Upper Cover Assembly")
3.
Loosen the mounting screw ...
Heater & A/C Control Unit (DATC) Repair procedures
Self Diagnosis
1.
Self-diagnosis process.
•
When operating the self-diagnostics, the below fault
(self-diagnostics code) will blink at 0.5 seconds interval on the
t ...
