Hyundai Elantra: Front Seat Belt / Height Adjust Components and Components Location
| Component Location |

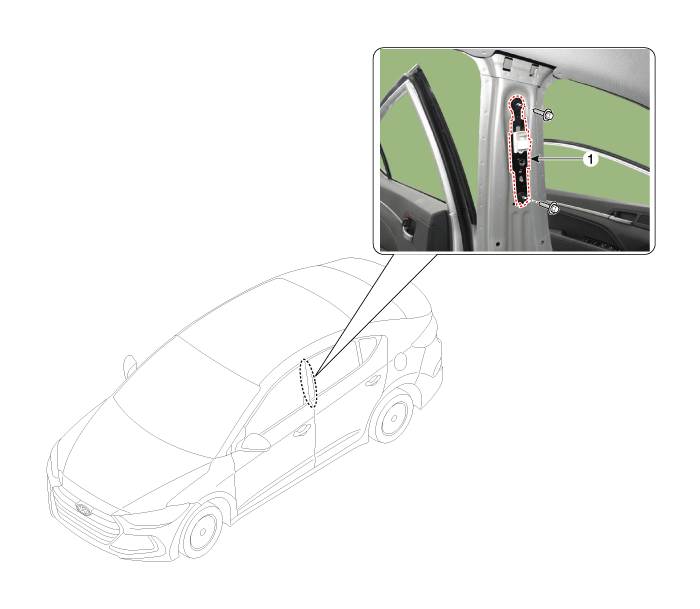

| 1. Height adjust |
Front Seat Belt Pretensioner Repair procedures
Replacement
•
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar ...
Height Adjust Repair procedures
Replacement
1.
Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")
2.
After loosening the mounting bolts, remove the height adjust (A).
Tig ...
